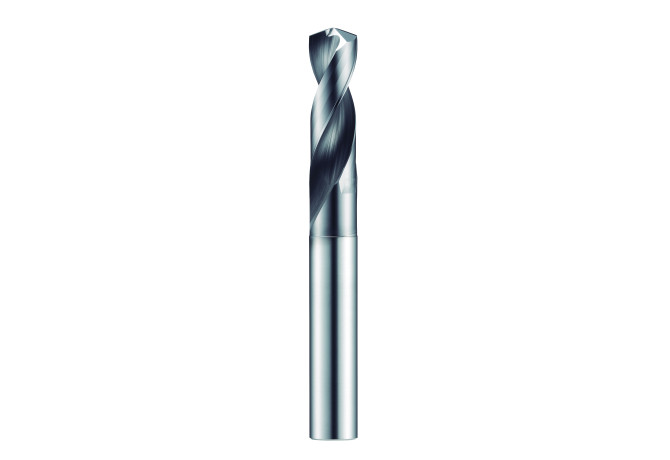

EZN2D1210S14

Артикул: EZN2D1210S14

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

DJT - Dijet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/30/2024

DIN

ZYL01400105

FamilyProducts

STRIKE DRILL For high precision drilling

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

54.2 mm

LDRED Neck length

55.157 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400105

LPR Protruding length

56.802 mm

LS Shank length

55.4 mm

LU Usable length

38 mm

Materials

P,M,K,S,H,O

Name Identifying order number

EZN2D1210S14

NOF Flute count

OAL Overall length

112.2 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.179 kg
