Главная Каталог продукции Toolunited 13 302-01 - Twist Drill DAL1101H

DAL1101H

Артикул: DAL1101H

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

11.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/14/2010

DIN

ZYL01100105

FamilyProducts

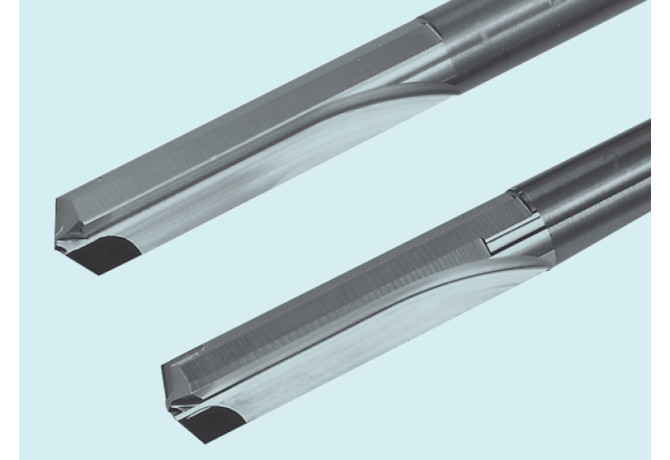

SUMIDIA Diamond drill DAL

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

DA2200

HAND Cutting direction

R - Right

ID Technical product number

DAL1101H

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

50 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11.01 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01100105

LPR Protruding length

50 mm

Materials

Name Identifying order number

DAL1101H

NOF Flute count

OAL Overall length

110 mm

SIG Point angle 1st step

120 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
