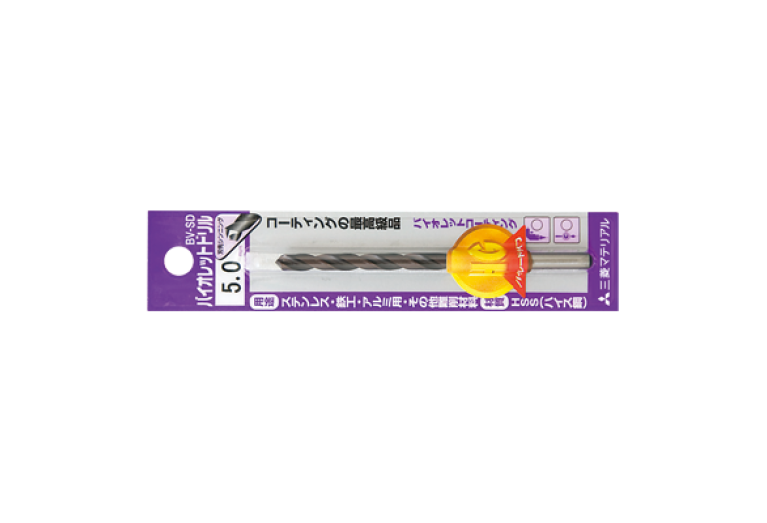

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill BVSDD1250

BVSDD1250

Артикул: 10464182

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COMPC Company code

MI - Mitsubishi Materials

CRCLMFG Chip removal class mfg

HSS

DC Cutting diameter minimum

12.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01250105

FamilyProducts

HSS drill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

GRDSYC Grind style code

MI-XR

HAND Cutting direction

R - Right

ID Technical product number

10464182

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

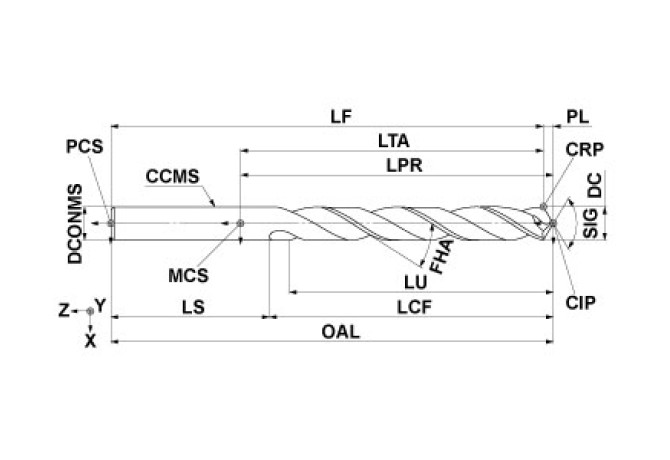

LCF Length chip flute

102.8 mm

LF Functional length

152 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

12.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250105

LU Usable length

99 mm

Name Identifying order number

BVSDD1250

NOF Flute count

OAL Overall length

155.8 mm

PL Point length

3.8 mm

SIG Point angle 1st step

118 Degree

Working process

BVB - Drilling
