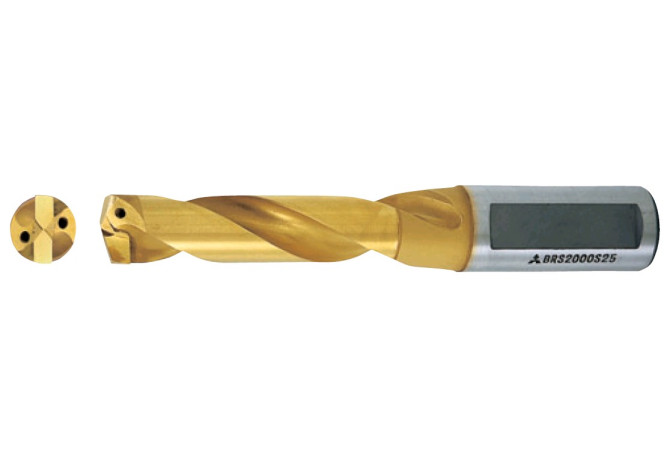

BRSB2650S32 UP20M

Артикул: 10018576

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

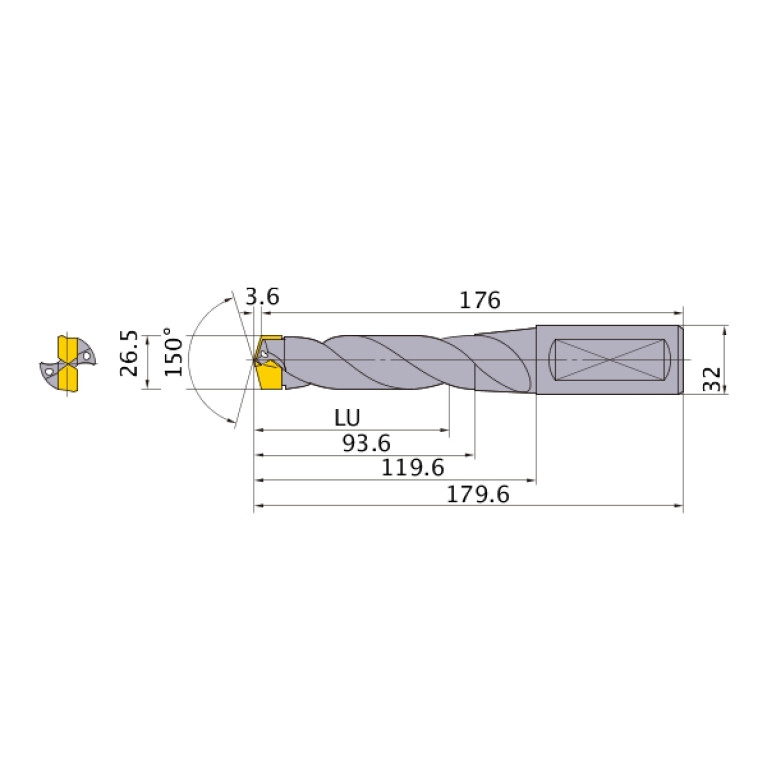

DC Cutting diameter minimum

26.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03201015

FamilyProducts

BRSB brazed drill, L/D=3

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

UP20M

HAND Cutting direction

R - Right

ID Technical product number

10018576

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

90 mm

LF Functional length

176 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LPR Protruding length

119.6 mm

LU Usable length

79.5 mm

Materials

Name Identifying order number

BRSB2650S32 UP20M

NOF Flute count

OAL Overall length

179.6 mm

PL Point length

3.6 mm

SIG Point angle 1st step

150 Degree

Working process

BVB - Drilling
