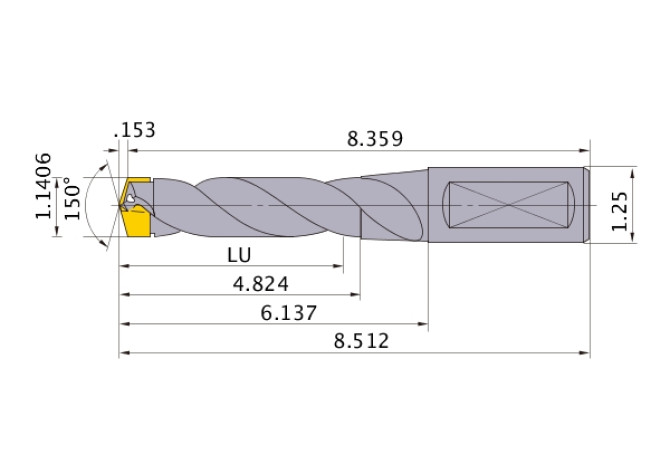

BRS0109 UP20M

Артикул: 111264

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

28.97124 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL12501035

FamilyProducts

drill with carbide cutting edges BRS, inch size

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

UP20M

HAND Cutting direction

R - Right

ID Technical product number

111264

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

118.6434 mm

LF Functional length

212.3186 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501035

LPR Protruding length

151.9936 mm

LU Usable length

86.91372 mm

Name Identifying order number

BRS0109 UP20M

NOF Flute count

PL Point length

3.8862 mm

SIG Point angle 1st step

150 Degree

Working process

BVB - Drilling
