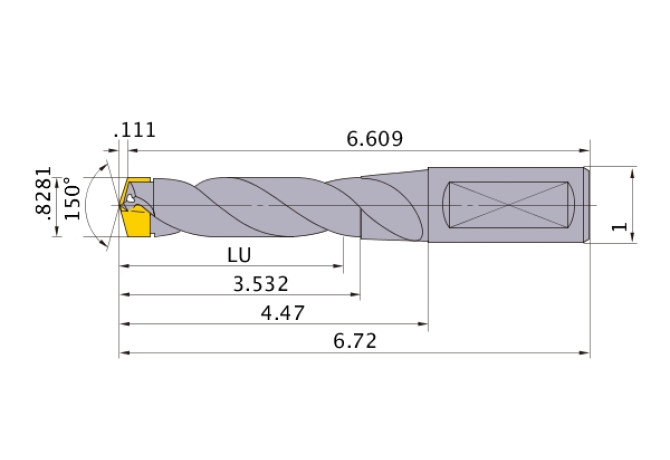

BRS0053 UP20M

BRS0053 UP20M BRS0053 UP20M

BRS0053 UP20M

Mitsubishi Materials
Артикул: 111244
В наличии
В корзину
Описание
Характеристики
BMC Body material code
B - Steel body with brazed carbide inserts
CCONMS Connection count machine side
1
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
21.03374 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL10001035
FamilyProducts
drill with carbide cutting edges BRS, inch size
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UP20M
HAND Cutting direction
R - Right
ID Technical product number
111244
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
86.8934 mm
LF Functional length
167.8686 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
110.7186 mm
LU Usable length
63.10122 mm
Name Identifying order number
BRS0053 UP20M
NOF Flute count
2
PL Point length
2.8194 mm
SIG Point angle 1st step
150 Degree
Working process
BVB - Drilling
