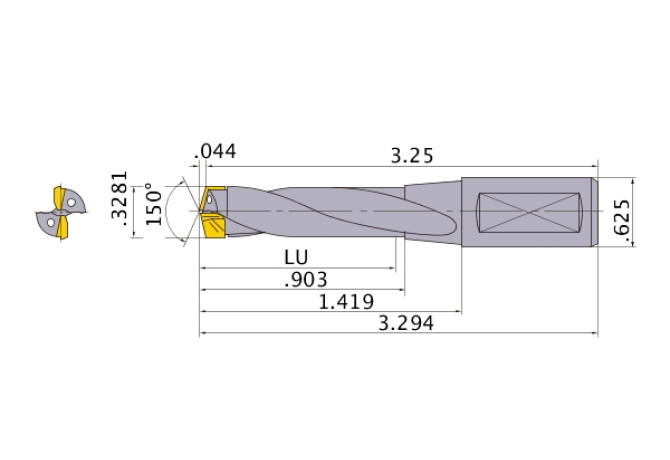

BRA0021 UP20M

Артикул: 100231

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

8.33374 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL06251035

FamilyProducts

drill with carbide cutting edges BRA, inch size

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

UP20M

HAND Cutting direction

R - Right

ID Technical product number

100231

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

21.8186 mm

LF Functional length

82.55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0625

LOC-03 DCONMS Diameter

15.875 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06251035

LPR Protruding length

34.925 mm

LU Usable length

25.00122 mm

Name Identifying order number

BRA0021 UP20M

NOF Flute count

PL Point length

1.1176 mm

SIG Point angle 1st step

150 Degree

Working process

BVB - Drilling
