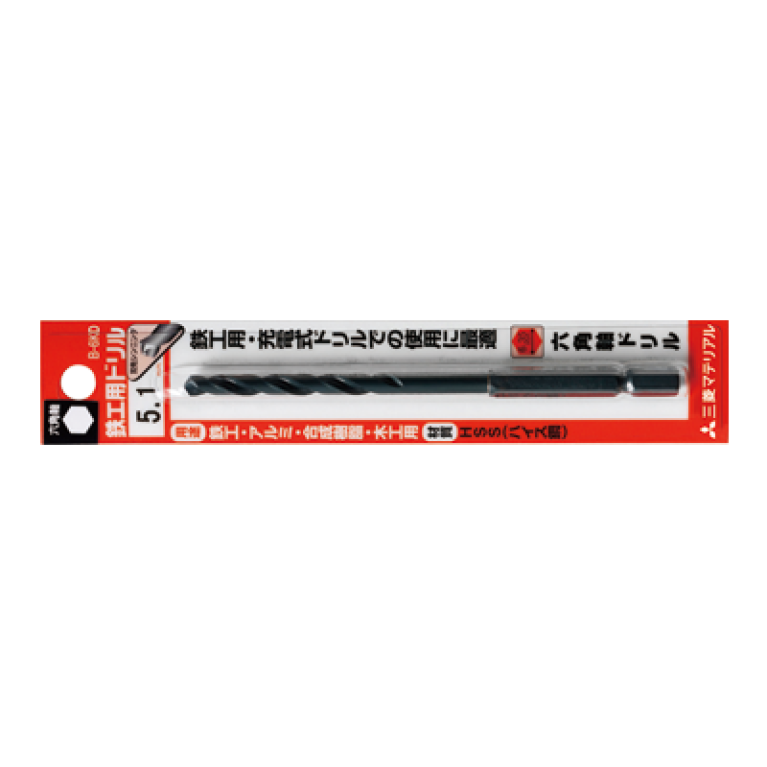

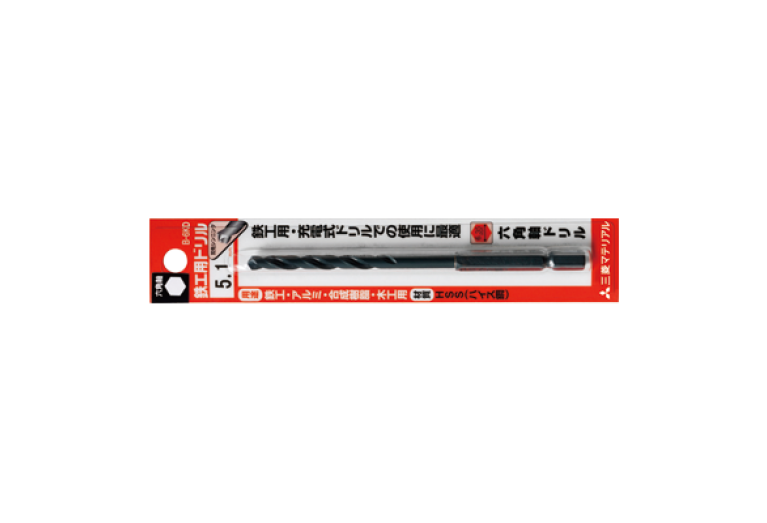

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B6KDD1200

B6KDD1200

Артикул: 10403730

В наличии

В корзину

Описание

Характеристики

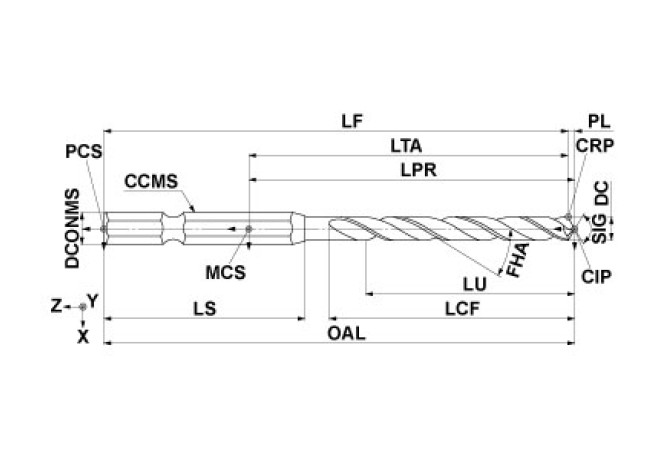

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CRCLMFG Chip removal class mfg

HSS

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

drill with hexagon shank

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

GRDSYC Grind style code

MI-X

HAND Cutting direction

R - Right

ID Technical product number

10403730

Interface codes

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

70 mm

LF Functional length

115 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

85 mm

Name Identifying order number

B6KDD1200

NOF Flute count

OAL Overall length

118.6 mm

PL Point length

3.6 mm

SIG Point angle 1st step

118 Degree

Working process

BVB - Drilling
