Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B556A12700DAL KN15

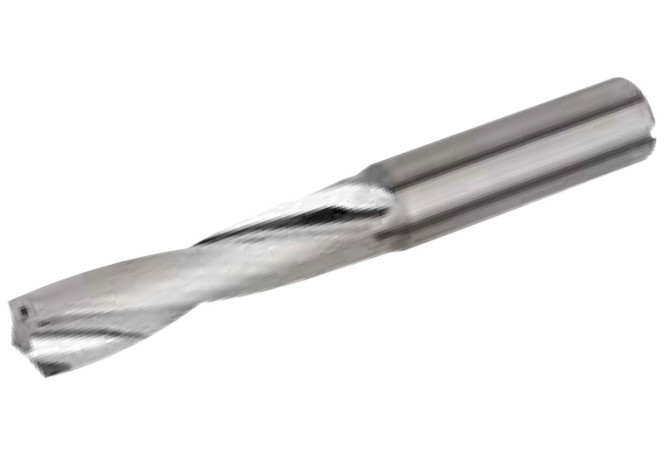

B556A12700DAL KN15

Артикул: 5420807

В наличии

В корзину

Описание

Характеристики

BMC Body material code

C - All-ceramics

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

UNCOATED

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

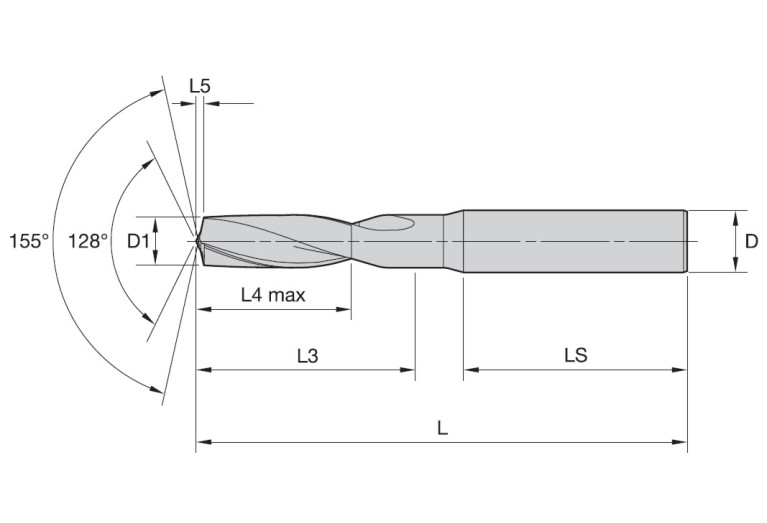

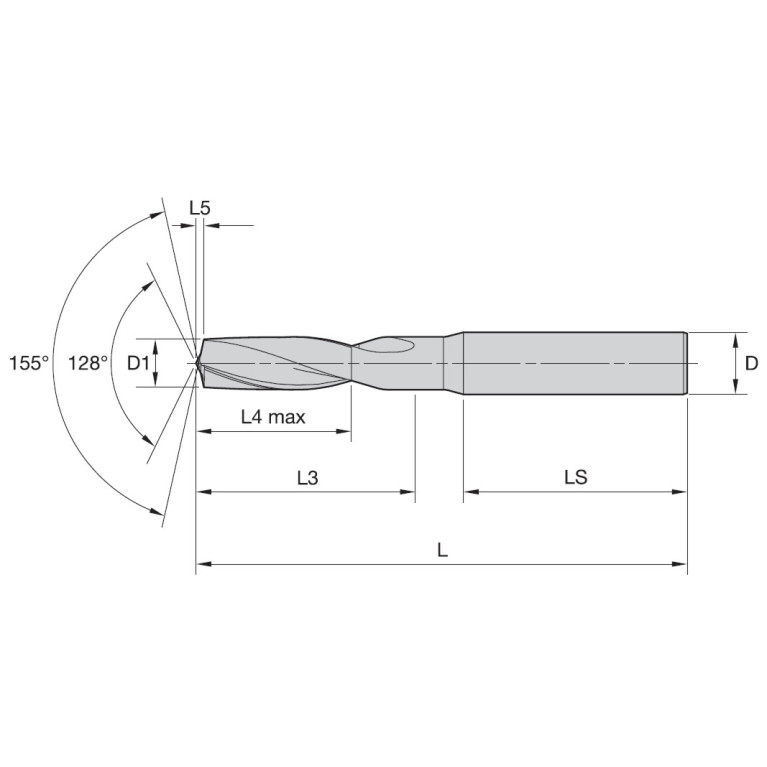

DC Cutting diameter minimum

12.7 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/27/2014

DIN

ZYL01400115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

DAL Drill for CFRP-Stack Materials, short 3xD

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KN15

GRDSYC Grind style code

KH-HP

HAND Cutting direction

R - Right

ID Technical product number

5420807

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400115

LS Shank length

45 mm

LU Usable length

43 mm

Materials

Name Identifying order number

B556A12700DAL KN15

NOF Flute count

OAL Overall length

107 mm

PL Point length

2.3 mm

SIG Point angle 1st step

155 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
