Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B411A05800 KF1

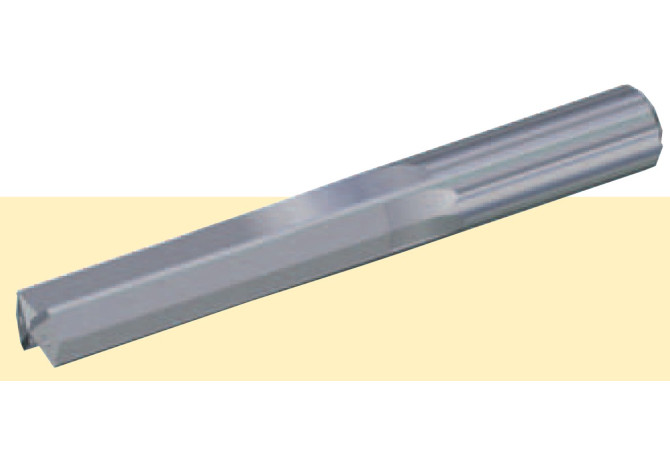

B411A05800 KF1

B411A05800 KF1 B411A05800 KF1 B411A05800 KF1 B411A05800 KF1

B411A05800 KF1

Kennametal
Артикул: 1198594
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
5.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
ZYL00600115
FamilyProducts
TX-Bohrer B411, metrisch
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
KF1
HAND Cutting direction
R - Right
ID Technical product number
1198594
Interface codes
J6 / J61
ISO
ZYL01F6000$$$$
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
44 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 ISO
ZYL01F6000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LPR Protruding length
46 mm
LS Shank length
36 mm
LU Usable length
35 mm
Materials
K,N,S
Name Identifying order number
B411A05800 KF1
NOF Flute count
2
OAL Overall length
82 mm
PL Point length
1.35 mm
SIG Point angle 1st step
130 Degree
Working process
BVB - Drilling
