Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B291A16000YPL KC7315

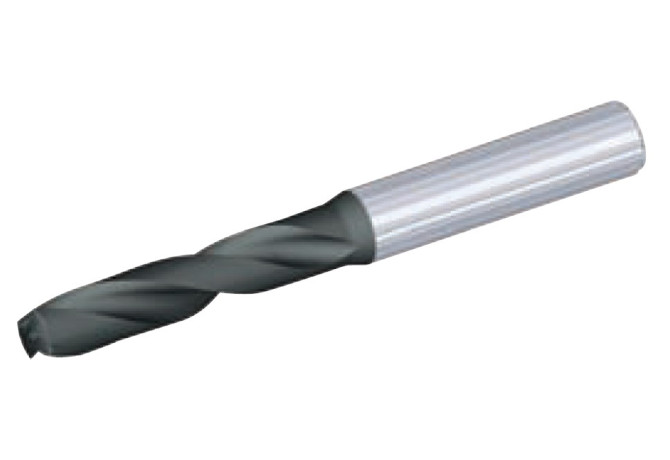

B291A16000YPL KC7315

Артикул: 3640727

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

ZYL01600115

FamilyProducts

Y-Tech YPL Drill with coolant

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

KC7315

GRDPRIO Standard designation of the grade main application

HC-P25

HAND Cutting direction

R - Right

ID Technical product number

3640727

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

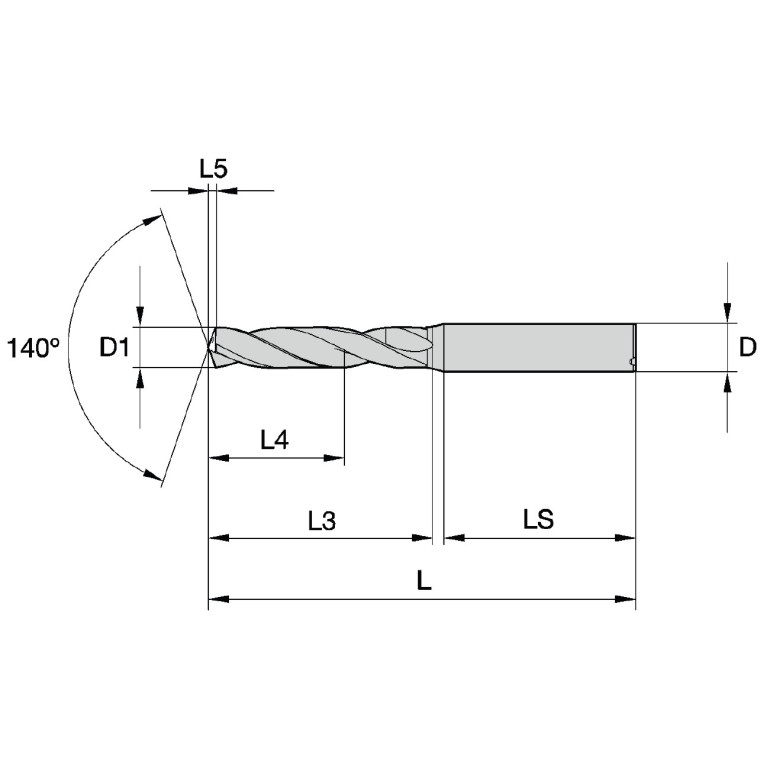

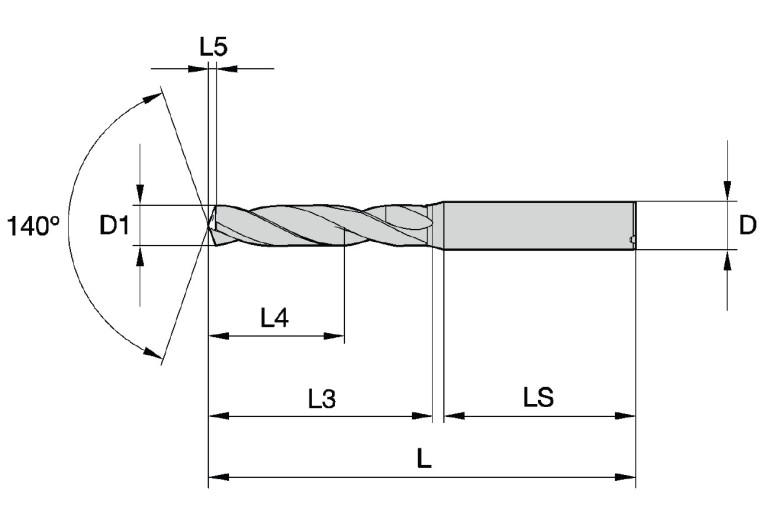

LPR Protruding length

65 mm

LS Shank length

48 mm

LU Usable length

45 mm

Materials

M,S

Name Identifying order number

B291A16000YPL KC7315

NOF Flute count

OAL Overall length

115 mm

PL Point length

3 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
