Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B225F12100HP KC7315

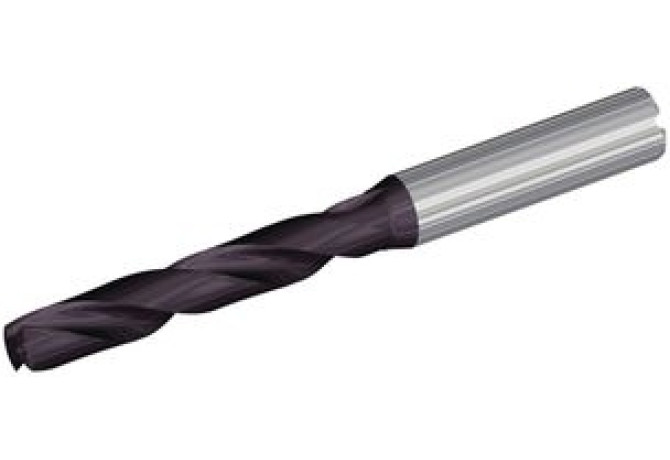

B225F12100HP KC7315

Артикул: 2262757

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAIN

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

12.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

ZYL01401315

FamilyProducts

SE HP drill w/ coolant B225F HP

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

KC7315

GRDPRIO Standard designation of the grade main application

HC-P25

HAND Cutting direction

R - Right

ID Technical product number

2262757

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

77 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401315

LPR Protruding length

79 mm

LS Shank length

45 mm

LU Usable length

60 mm

Materials

Name Identifying order number

B225F12100HP KC7315

NOF Flute count

OAL Overall length

124 mm

PL Point length

2.2 mm

SIG Point angle 1st step

135 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
