Главная Каталог продукции Toolunited 13 302-01 - Twist Drill B105F10500 K10

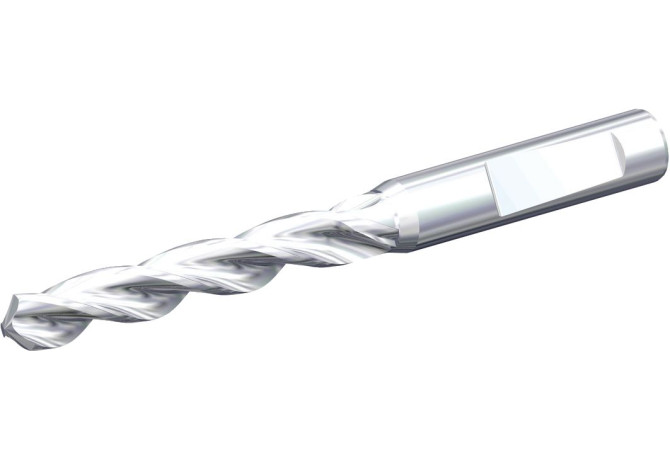

B105F10500 K10

Артикул: 1199596

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/5/2017

DIN

ZYL01201305

FamilyProducts

B105F • ~ 5 x D TF Drill without Coolant

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

K10

GRDPRIO Standard designation of the grade main application

HC-K10

HAND Cutting direction

R - Right

ID Technical product number

1199596

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

71 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201305

LPR Protruding length

71 mm

LS Shank length

45 mm

LU Usable length

56 mm

Materials

K,N,S

Name Identifying order number

B105F10500 K10

NOF Flute count

OAL Overall length

118 mm

PL Point length

2.6 mm

SIG Point angle 1st step

130 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
