Главная Каталог продукции Toolunited 13 302-01 - Twist Drill A6292TIN-20.5

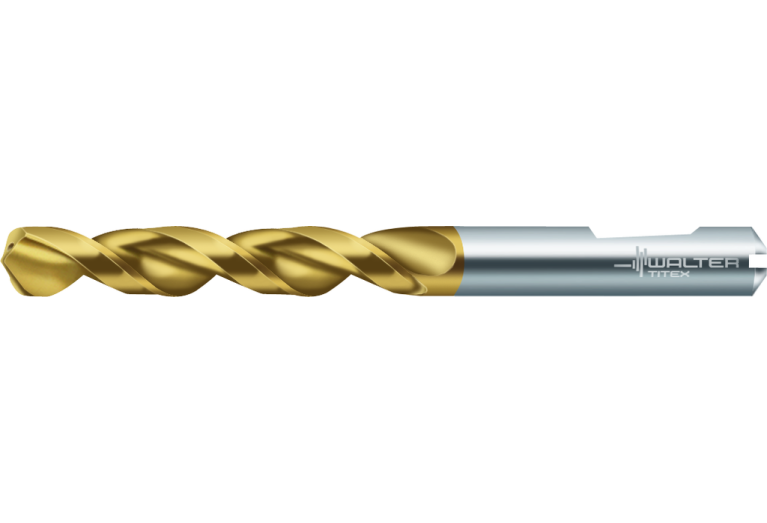

A6292TIN-20.5

A6292TIN-20.5 A6292TIN-20.5 A6292TIN-20.5

A6292TIN-20.5

Walter
Артикул: 5066405
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

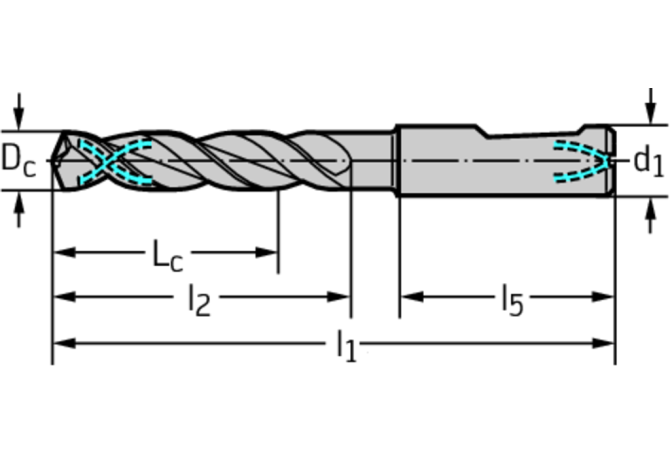

DC Cutting diameter minimum
20.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501315
FamilyProducts
HSS-E drills with coolant-through A6292TIN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5066405
Interface codes
J6 / J61
ISO
ZYL13G2500h$06
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
145 mm
LF Functional length
146.22 mm
LOC-03 CCFMS Form
13
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL13G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501315
LPR Protruding length
151 mm
LS Shank length
56 mm
LU Usable length
120 mm
Name Identifying order number
A6292TIN-20.5
NOF Flute count
2
OAL Overall length
207 mm
PL Point length
4.78 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
130 Degree
STDLET Standard letter to the standard number
WN
STDNO Standard
TP-NORM 3
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.41 kg
