Главная Каталог продукции Toolunited 13 302-01 - Twist Drill A6292TIN-18.5

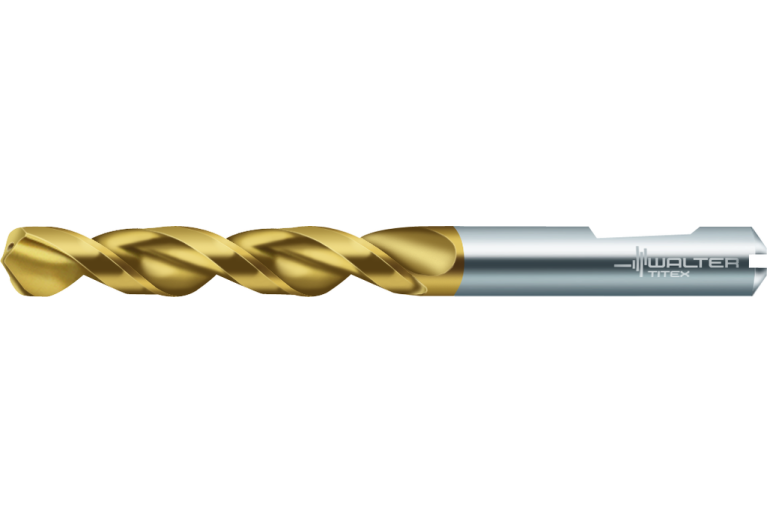

A6292TIN-18.5

A6292TIN-18.5 A6292TIN-18.5 A6292TIN-18.5

A6292TIN-18.5

Walter
Артикул: 5066401
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
18.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02001315
FamilyProducts
HSS-E drills with coolant-through A6292TIN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5066401
Interface codes
J6 / J61
ISO
ZYL13G2000h$06
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
124 mm
LF Functional length
121.69 mm
LOC-03 CCFMS Form
13
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL13G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001315
LPR Protruding length
126.003 mm
LS Shank length
50 mm
LU Usable length
104 mm
Name Identifying order number
A6292TIN-18.5
NOF Flute count
2
OAL Overall length
176 mm
PL Point length
4.313 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
130 Degree
STDLET Standard letter to the standard number
WN
STDNO Standard
TP-NORM 3
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.248 kg
