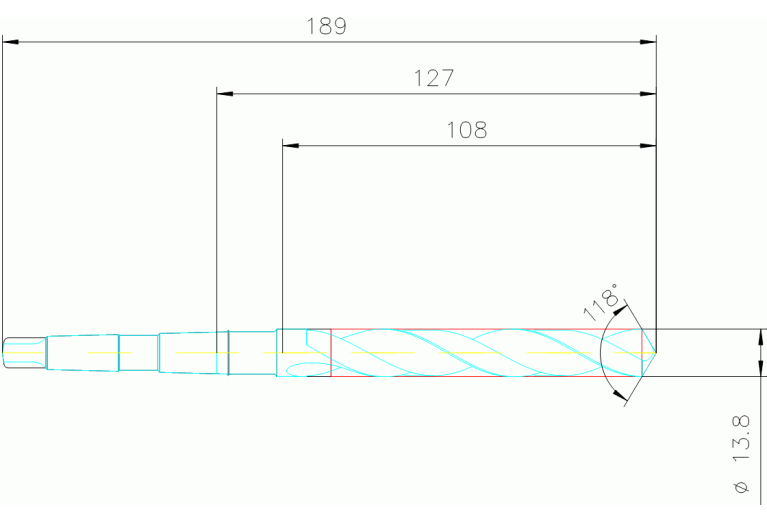

A4211-13.8
A4211-13.8
Артикул:
5065316
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
13.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
MKG00102085
FamilyProducts

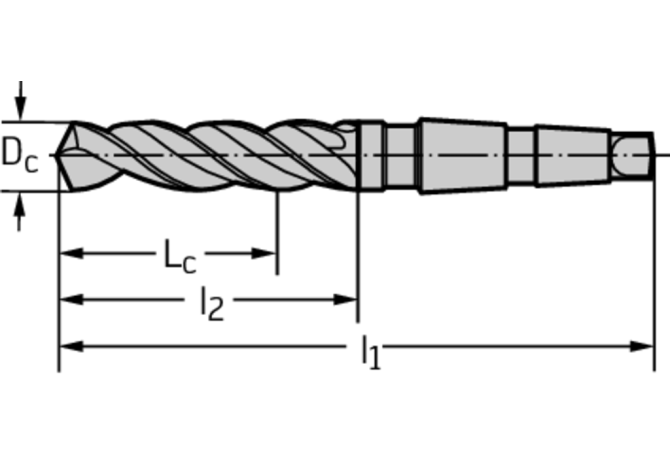

HSS twist drills with Morse taper A4211
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5065316
Interface codes
J6 / J61
ISO
MKG20C0010$$$$
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
108 mm
LF Functional length
122.854065 mm
LOC-03 CCFMS Form
20
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
MKG Morse taper
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0010
LOC-03 DCONMS Diameter
1 mm
LOC-03 ISO
MKG20C0010$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00102085
LPR Protruding length
127.00004 mm
LU Usable length
94 mm
Name Identifying order number
A4211-13.8
NOF Flute count
2
OAL Overall length
189 mm
PL Point length
4.1459384 mm
RPMX Rotational speed maximum
10000 1/min
SIG Point angle 1st step
118 Degree
STDLET Standard letter to the standard number
BE
STDNO Standard
DIN 345
Working process
BVB - Drilling
WT Weight of item
0.126 kg
