Главная Каталог продукции Toolunited 13 302-01 - Twist Drill A1544-10

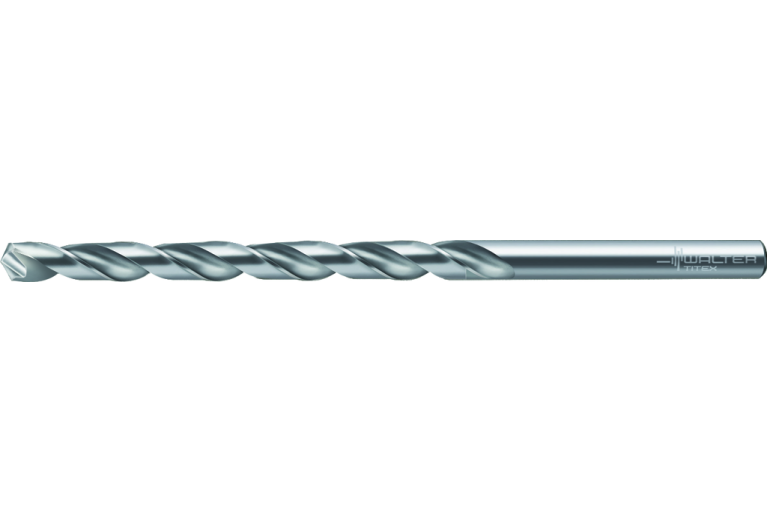

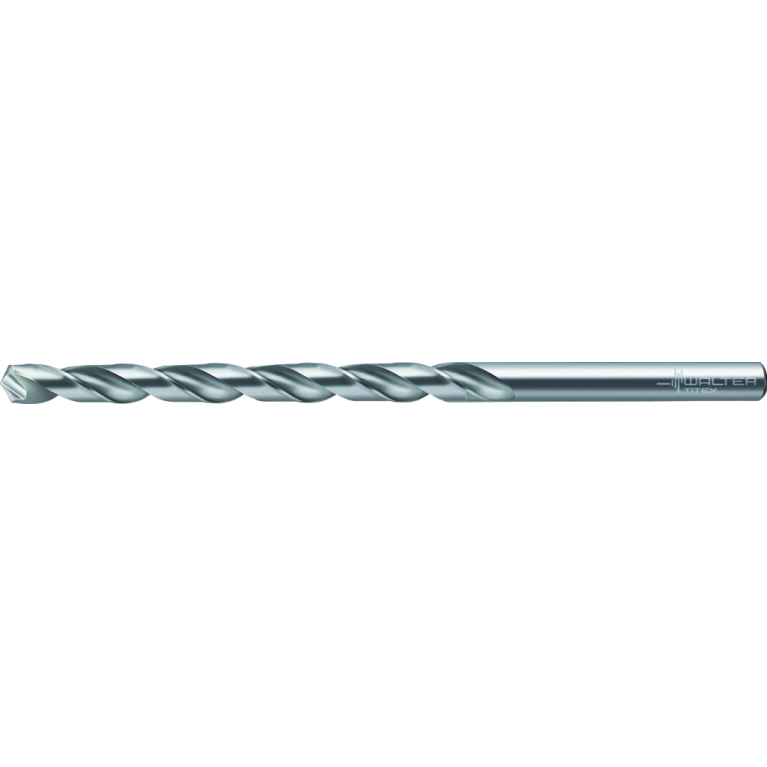

A1544-10

A1544-10 A1544-10 A1544-10

A1544-10

Walter
Артикул: 5062061
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

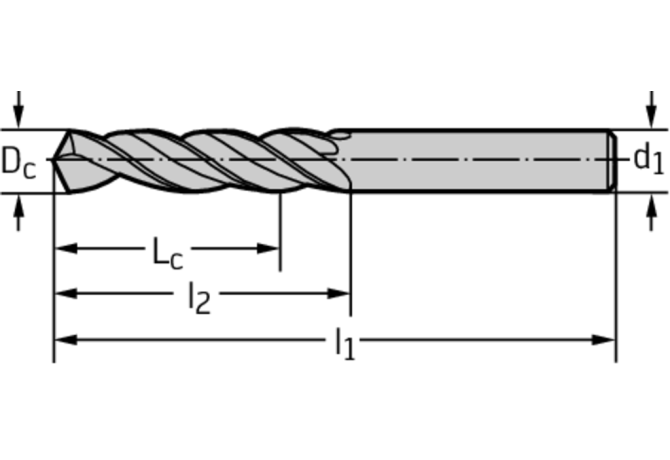

DC Cutting diameter minimum
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01000105
FamilyProducts
HSS-E twist drills, long A1544
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5062061
Interface codes
J6 / J61
ISO
ZYL01G1000f$11
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
121 mm
LDRED Neck length
105 mm
LF Functional length
181.67 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
f$11
LOC-03 ISO
ZYL01G1000f$11
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000105
LPR Protruding length
126.002 mm
LS Shank length
58 mm
LU Usable length
105 mm
Materials
P,M,N,S
Name Identifying order number
A1544-10
NOF Flute count
2
OAL Overall length
184 mm
PL Point length
2.332 mm
RPMX Rotational speed maximum
50000 1/min
SIG Point angle 1st step
130 Degree
STDNO Standard
DIN 340
TCDCONMS ISO-tolerance class shank diameter
f11
Working process
BVB - Drilling
WT Weight of item
0.078 kg
