Главная Каталог продукции Toolunited 13 302-01 - Twist Drill A1166TIN-3.3

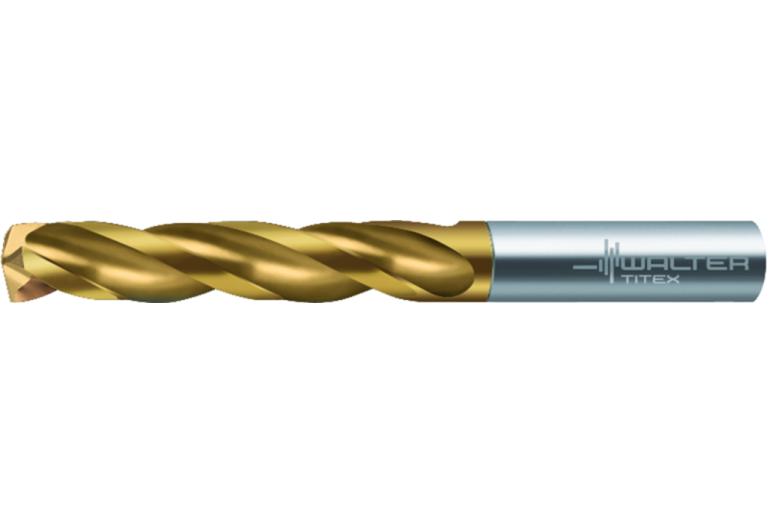

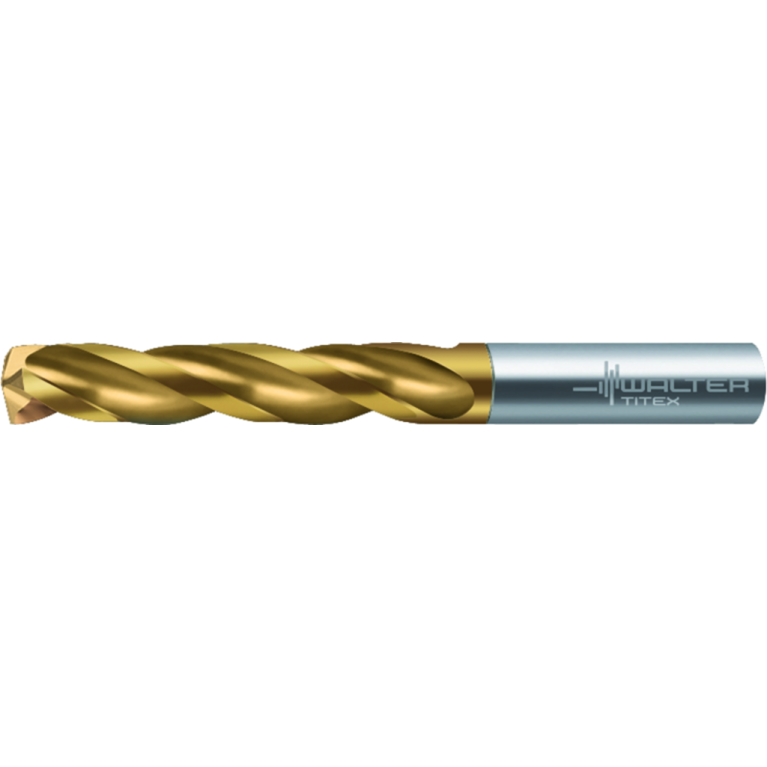

A1166TIN-3.3

A1166TIN-3.3 A1166TIN-3.3 A1166TIN-3.3

A1166TIN-3.3

Walter
Артикул: 5057949
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

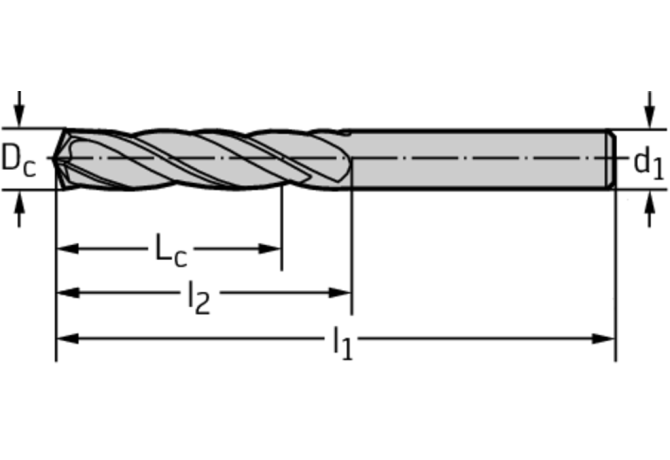

DC Cutting diameter minimum
3.3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00330105
FamilyProducts
Solid carbide countersinkers A1166TIN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TIN
HAND Cutting direction
R - Right
ID Technical product number
5057949
Interface codes
J6 / J61
ISO
ZYL01F3300h$06
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
24 mm
LDRED Neck length
18 mm
LF Functional length
48.56 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0033
LOC-03 DCONMS Diameter
3.3 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F3300h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00330105
LPR Protruding length
25.652 mm
LS Shank length
23.35 mm
LU Usable length
18 mm
Materials
P,H
Name Identifying order number
A1166TIN-3.3
NOF Flute count
3
OAL Overall length
49 mm
PL Point length
0.442 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
150 Degree
STDNO Standard
TP-NORM 4
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.005 kg
