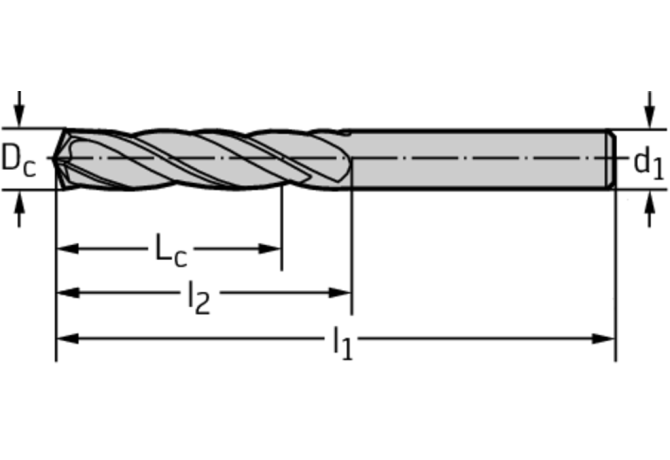

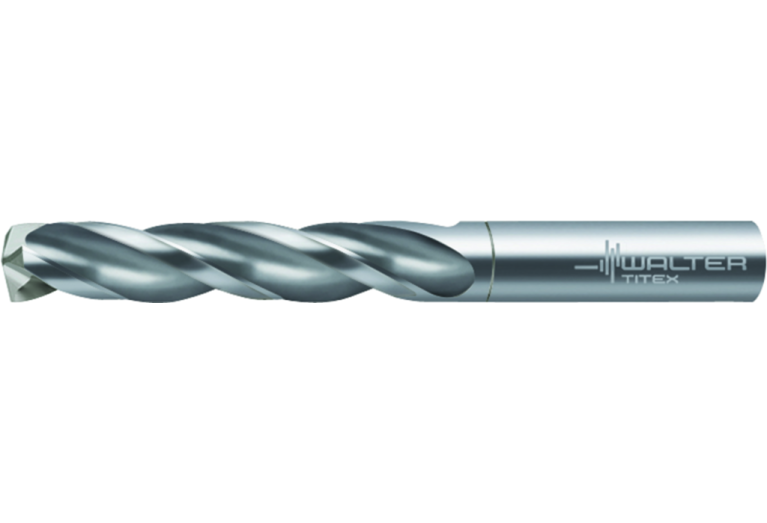

A1166-3.5

A1166-3.5 A1166-3.5 A1166-3.5

A1166-3.5

Walter
Артикул: 5057860
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
3.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00350105
FamilyProducts
Solid carbide countersinkers A1166
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5057860
Interface codes
J6 / J61
ISO
ZYL01F3500h$06
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
27 mm
LDRED Neck length
21 mm
LF Functional length
51.53 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F3500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00350105
LPR Protruding length
28.749 mm
LS Shank length
23.25 mm
LU Usable length
21 mm
Materials
P,N,S,H
Name Identifying order number
A1166-3.5
NOF Flute count
3
OAL Overall length
52 mm
PL Point length
0.469 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
150 Degree
STDNO Standard
TP-NORM 4
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.006 kg
