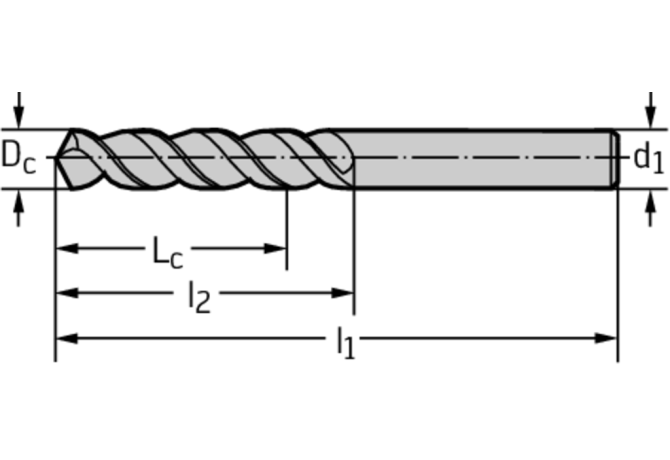

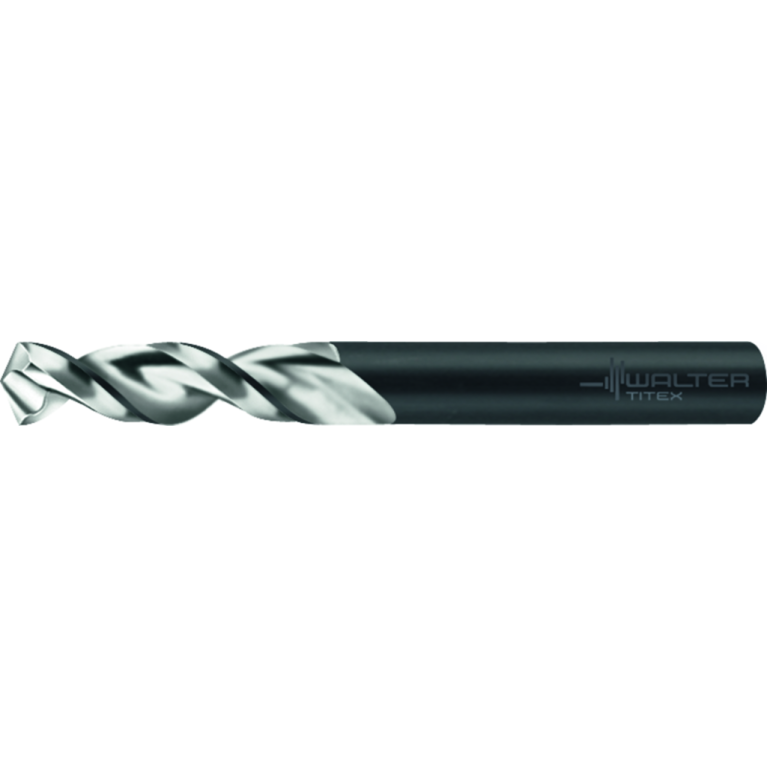

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill A1148-13/32IN

A1148-13/32IN

A1148-13/32IN A1148-13/32IN A1148-13/32IN

A1148-13/32IN

Walter
Артикул: 5057140
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
10.319 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04060125
FamilyProducts
HSS-E twist drills, extra short A1148
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5057140
Interface codes
J6 / J61
ISO
ZYL01R4062f$11
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
43 mm
LDRED Neck length
27 mm
LF Functional length
86.59 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0406
LOC-03 DCONMS Diameter
10.319 mm
LOC-03 TCDCONCDMS Tolerance class coded
f$11
LOC-03 ISO
ZYL01R4062f$11
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04060125
LPR Protruding length
48.156 mm
LS Shank length
40.84 mm
LU Usable length
27 mm
Materials
P,M,K,N,S,O
Name Identifying order number
A1148-13/32IN
NOF Flute count
2
OAL Overall length
89 mm
PL Point length
2.406 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
130 Degree
STDNO Standard
DIN 1897
TCDCONMS ISO-tolerance class shank diameter
f11
Working process
BVB - Drilling
WT Weight of item
0.046 kg
