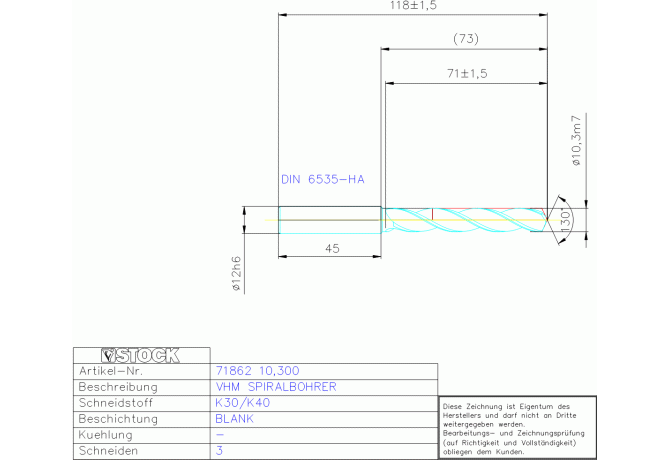

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 71862 10.300

71862 10.300

Артикул: 9718620103000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10.3 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01200105

FamilyProducts

VHM SUPER V83-G AL 3S 10,300 DIN 6537L

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-RK

HAND Cutting direction

R - Right

ID Technical product number

9718620103000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

71 mm

LF Functional length

115.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

73 mm

LS Shank length

45 mm

LU Usable length

50.4 mm

Name Identifying order number

71862 10.300

NOF Flute count

OAL Overall length

118 mm

PL Point length

2.5 mm

SIG Point angle 1st step

130 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537L

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.114 kg
