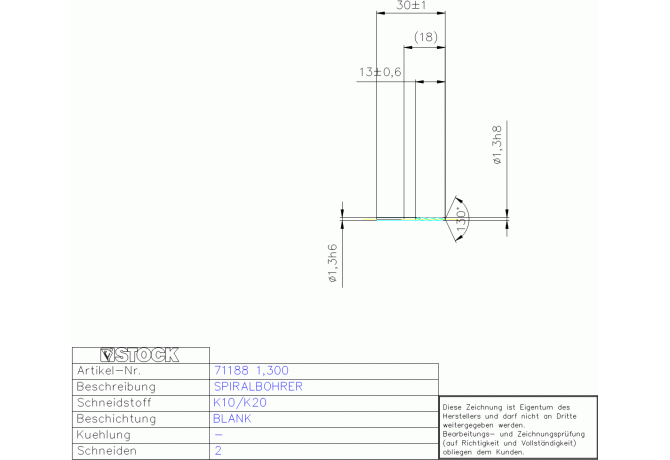

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 71188 1.300

71188 1.300

Артикул: 9711880013000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.3 mm

DCONMSLD Shank diameter lower limit

-0.006 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00130105

FamilyProducts

VHM-SPIRALBOHRER 1,300 WN RN K10 ZYL

FHA Flute helix angle

32 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

6.5 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9711880013000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

13 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0013

LOC-03 DCONMS Diameter

1.3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00130105

LPR Protruding length

18 mm

LS Shank length

17 mm

LU Usable length

11 mm

Name Identifying order number

71188 1.300

NOF Flute count

OAL Overall length

30 mm

PL Point length

0.4 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

0.001 kg
