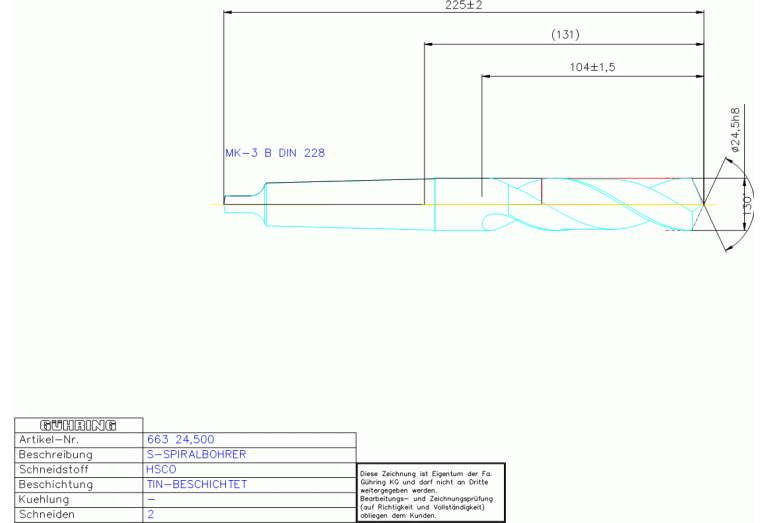

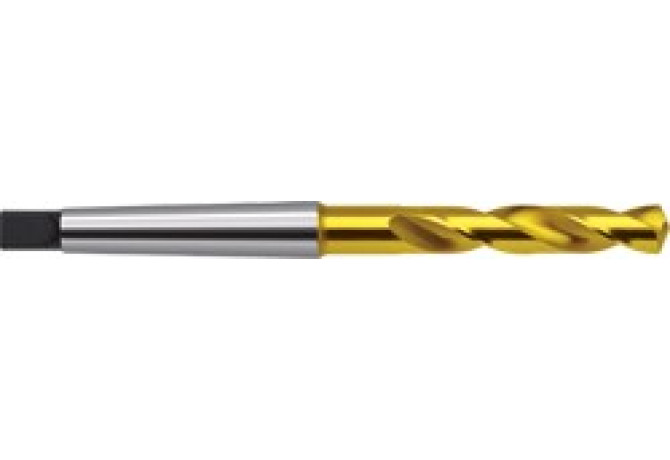

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 663 24.500

663 24.500

Артикул: 663 24.500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

24.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00302085

FamilyProducts

S-SPIRALBOHRER

FHA Flute helix angle

32 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

125 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

104 mm

LF Functional length

125.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

131 mm

LU Usable length

76 mm

Name Identifying order number

663 24.500

NOF Flute count

OAL Overall length

225 mm

PL Point length

5.8 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

0.547 kg
