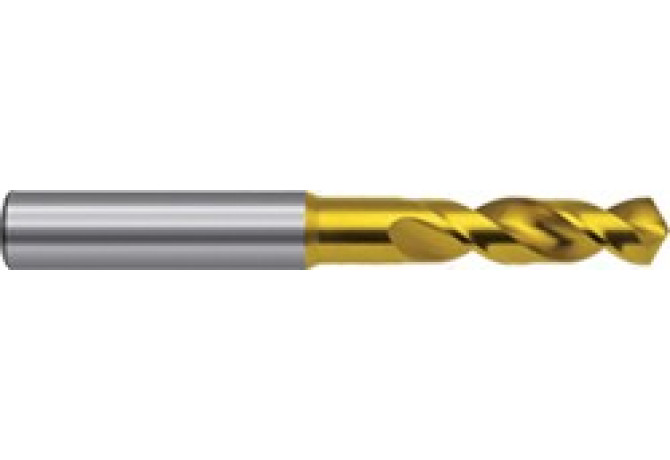

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 512 11.500

512 11.500

Артикул: 9005120115000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

11.5 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01200105

FamilyProducts

HSCO S-BOH 11,500 GU500 WN RN VERST,SCH.

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

45 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9005120115000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

47 mm

LF Functional length

100.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

59 mm

LS Shank length

45 mm

LU Usable length

36 mm

Name Identifying order number

512 11.500

NOF Flute count

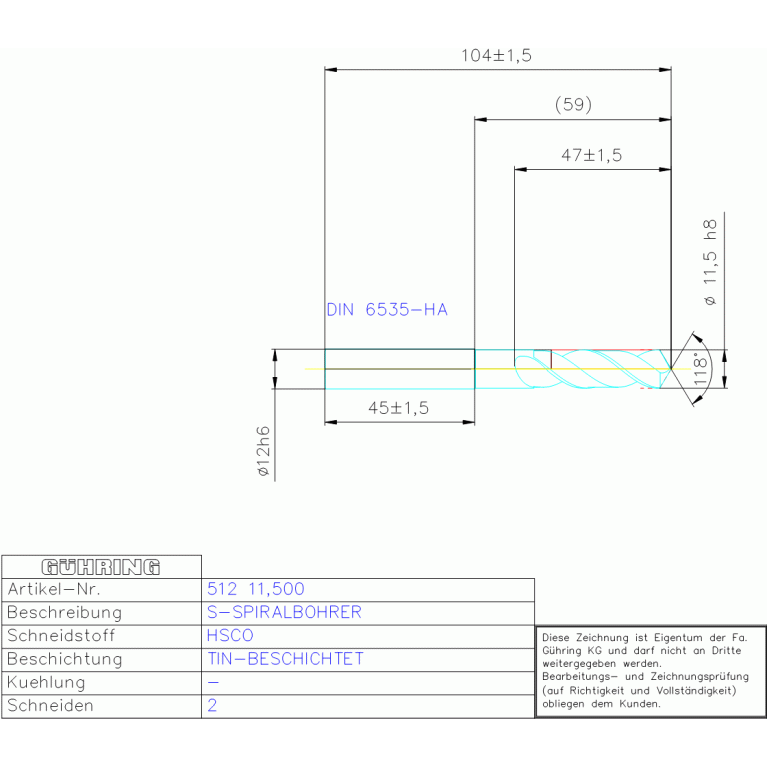

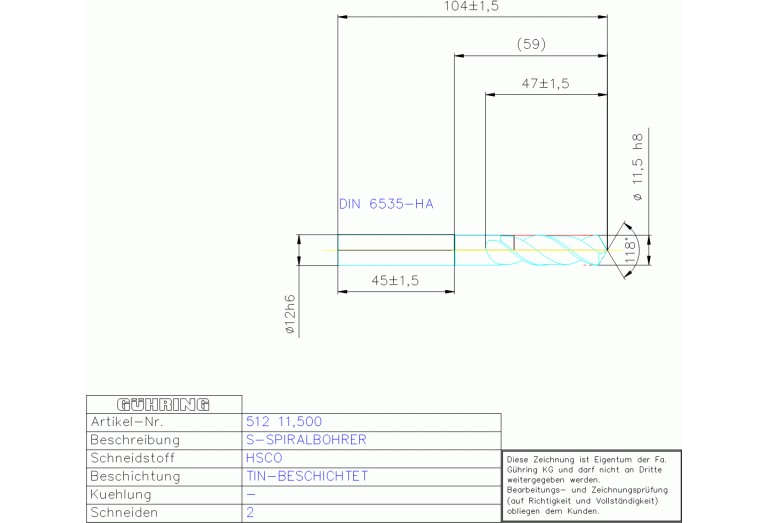

OAL Overall length

104 mm

PL Point length

3.5 mm

SIG Point angle 1st step

118 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.075 kg
