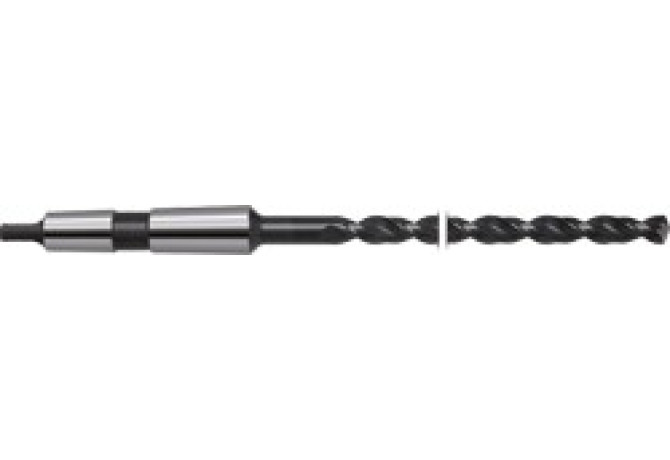

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 374 32.000

374 32.000

Артикул: 9003740320000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00402195

FamilyProducts

HSCO KUEHLKANALBOH, 32,000 WN 3RN GT100

FHA Flute helix angle

41 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

114.5 mm

GRD2ND Standard designation of the grade 2nd application

HSCO-KI

GRDMFG Grade manufacturers designation

HSCO-KI

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9003740320000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

320 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00402195

LPR Protruding length

363.5 mm

LS Shank length

136 mm

LU Usable length

294 mm

Name Identifying order number

374 32.000

NOF Flute count

OAL Overall length

493 mm

PL Point length

7.5 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

1.786 kg
