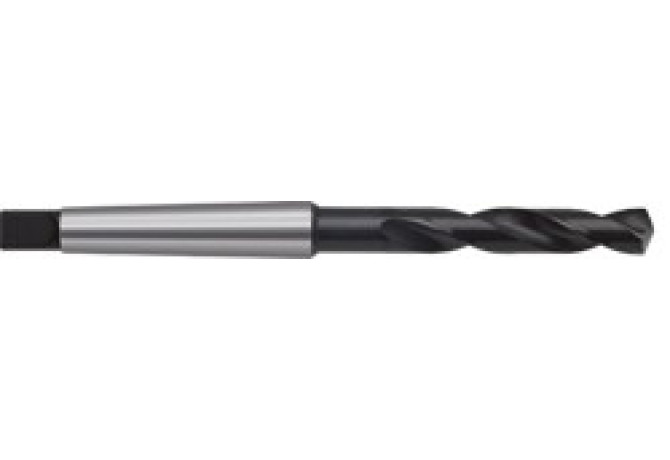

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 363 37.000

363 37.000

Артикул: 363 37.000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

37 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00402085

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

170 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

127 mm

LF Functional length

149.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0040

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00402085

LPR Protruding length

158.5 mm

LU Usable length

89 mm

Name Identifying order number

363 37.000

NOF Flute count

OAL Overall length

276 mm

PL Point length

8.7 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

1.364 kg
