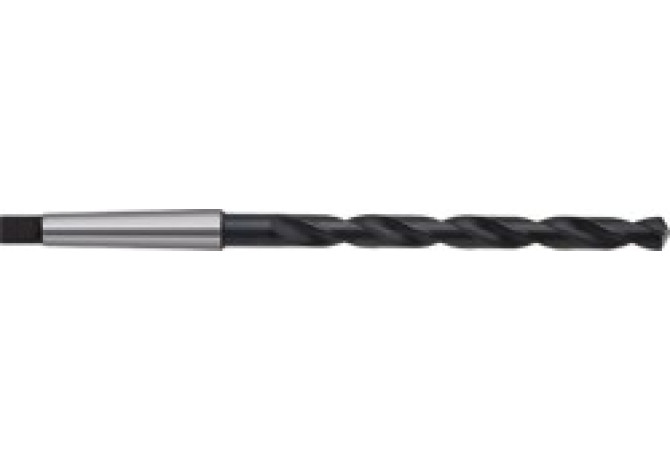

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 357 44.500

357 44.500

Артикул: 357 44.500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

44.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00402085

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

212 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

298 mm

LF Functional length

316.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0040

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00402085

LPR Protruding length

329.5 mm

LU Usable length

252 mm

Name Identifying order number

357 44.500

NOF Flute count

OAL Overall length

447 mm

PL Point length

13.4 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN 341

Working process

BVB - Drilling

WT Weight of item

2.965 kg
