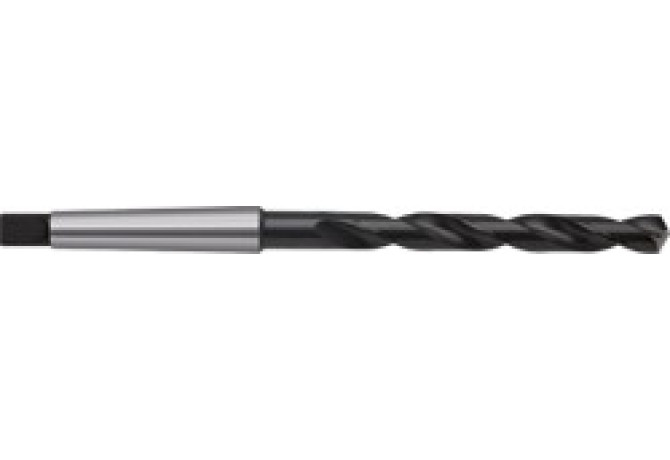

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 345 9.200

345 9.200

Артикул: 345 9.200

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00102085

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

50 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

81 mm

LF Functional length

97.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0010

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00102085

LPR Protruding length

100 mm

LU Usable length

69 mm

Name Identifying order number

345 9.200

NOF Flute count

OAL Overall length

162 mm

PL Point length

2.8 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN 345

Working process

BVB - Drilling

WT Weight of item

0.074 kg
