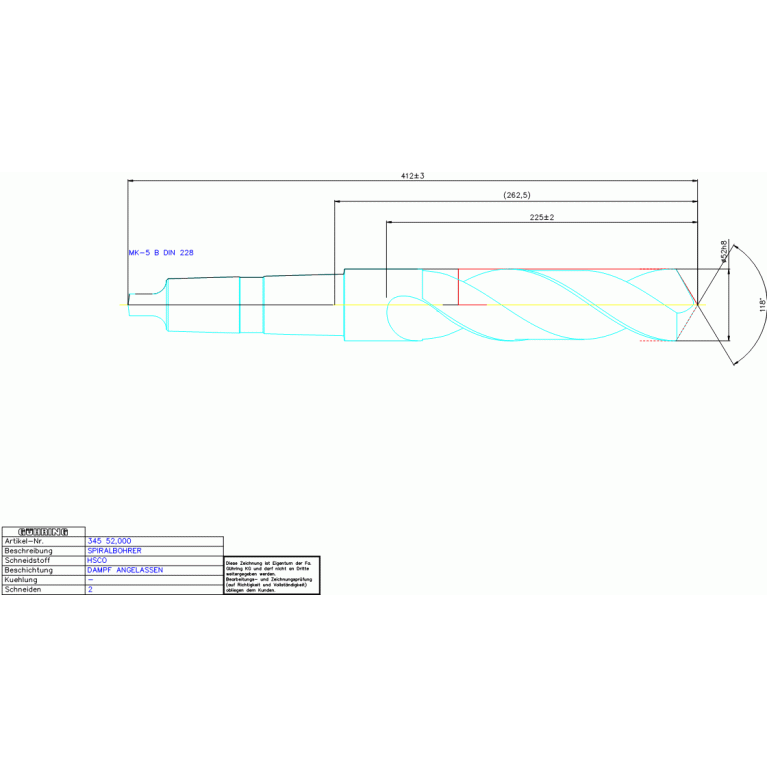

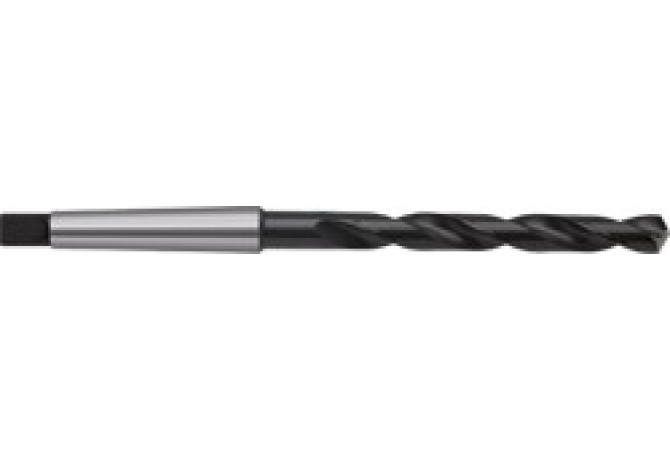

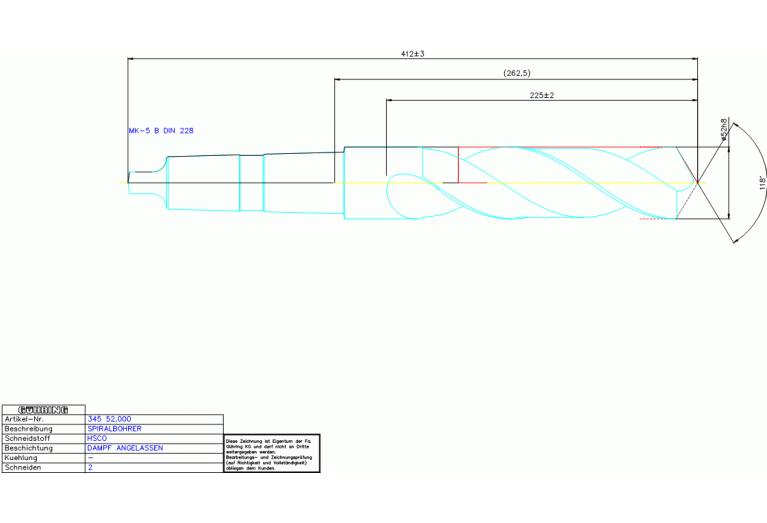

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 345 52.000

345 52.000

Артикул: 345 52.000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

52 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00502085

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

36 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

236 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

225 mm

LF Functional length

246.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00502085

LPR Protruding length

262.5 mm

LU Usable length

173 mm

Name Identifying order number

345 52.000

NOF Flute count

OAL Overall length

412 mm

PL Point length

15.7 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN 345

Working process

BVB - Drilling

WT Weight of item

4.083 kg
