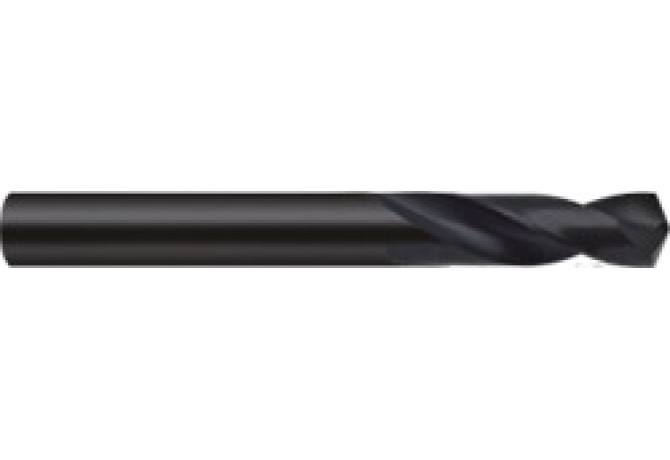

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 329 22.250

329 22.250

Артикул: 329 22.250

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

22.25 mm

DCONMSLD Shank diameter lower limit

-0.15 mm

DCONMSUD Shank diameter upper limit

-0.02 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL02220105

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

32 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

112 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

70 mm

LF Functional length

135.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0222

LOC-03 DCONMS Diameter

22.25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02220105

LPR Protruding length

75 mm

LS Shank length

71 mm

LU Usable length

45 mm

Name Identifying order number

329 22.250

NOF Flute count

OAL Overall length

141 mm

PL Point length

5.2 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN 1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.347 kg
