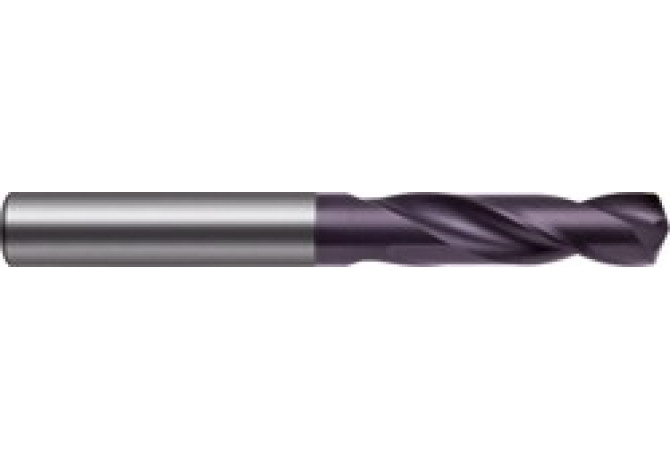

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 2473 3.700

2473 3.700

Артикул: 2473 3.700

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

NANOFIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.7 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00370105

FamilyProducts

NANOFIRE-RATIOBOHRER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

20.1 mm

GRD2ND Standard designation of the grade 2nd application

K/P

GRDMFG Grade manufacturers designation

K/P

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

20 mm

LF Functional length

51.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0037

LOC-03 DCONMS Diameter

3.7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00370105

LPR Protruding length

25 mm

LS Shank length

32 mm

LU Usable length

15 mm

Name Identifying order number

2473 3.700

NOF Flute count

OAL Overall length

52 mm

PL Point length

0.7 mm

SIG Point angle 1st step

140 Degree

STDNO Standard

DIN 6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.007 kg
