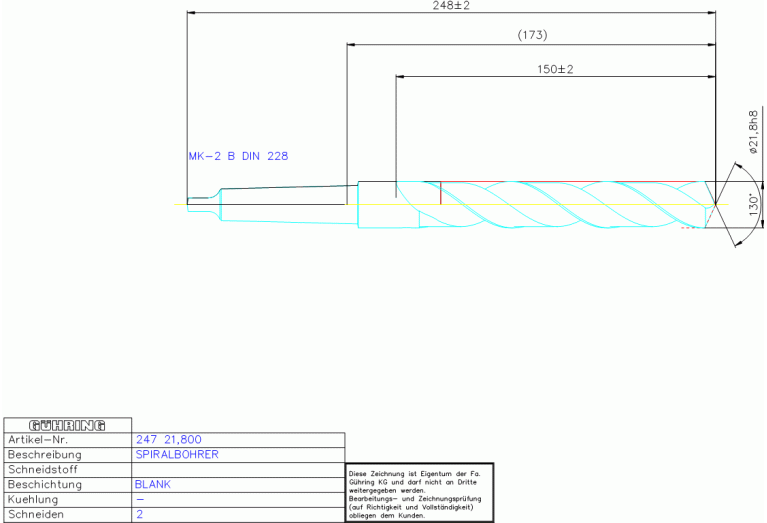

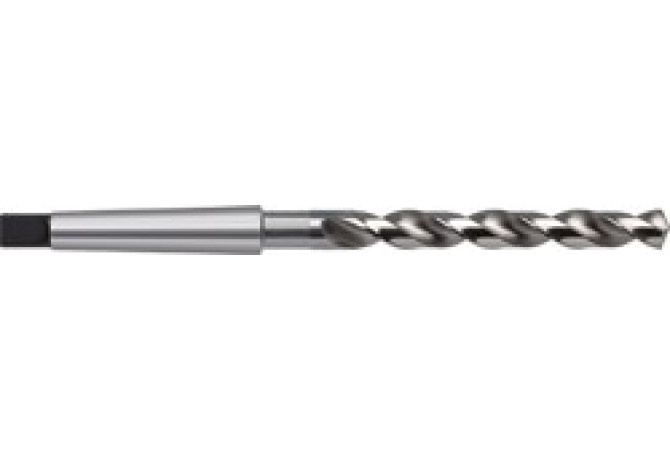

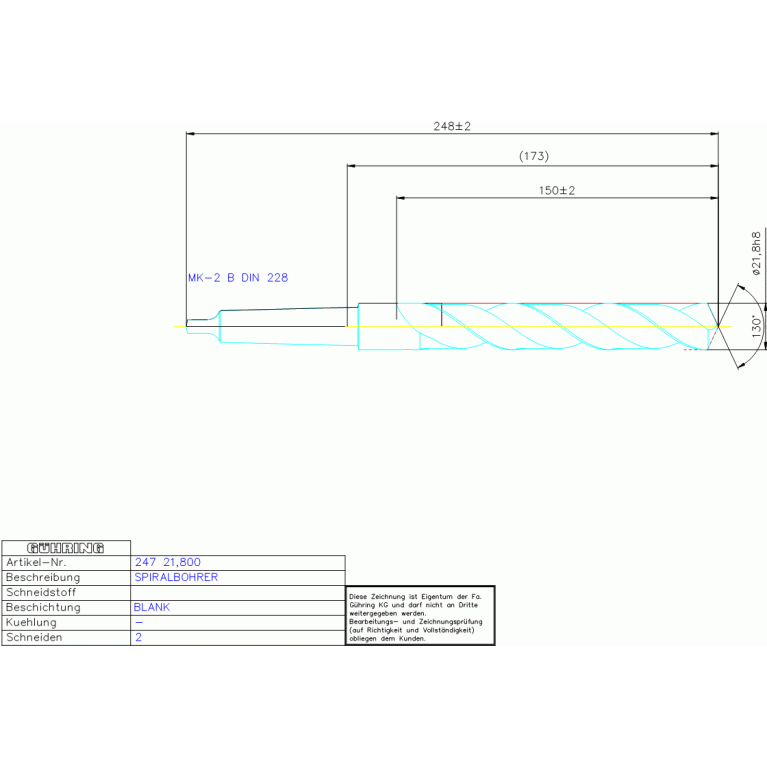

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 247 21.800

247 21.800

Артикул: 247 21.800

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

21.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00202085

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

90 mm

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

150 mm

LF Functional length

167.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

173 mm

LU Usable length

129 mm

Name Identifying order number

247 21.800

NOF Flute count

OAL Overall length

248 mm

PL Point length

5.1 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN 345

Working process

BVB - Drilling

WT Weight of item

0.363 kg
