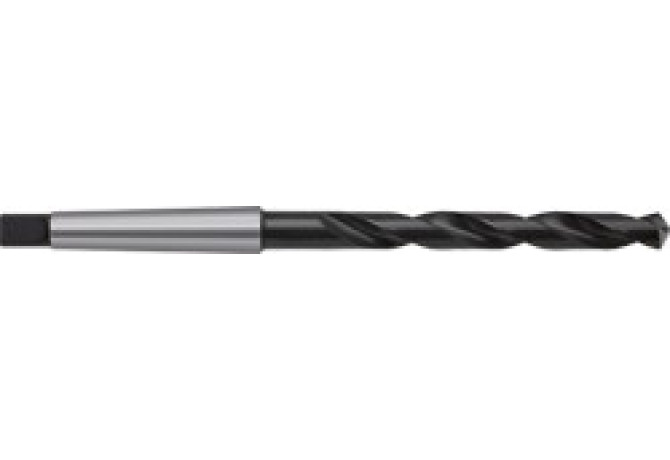

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 245 98.000

245 98.000

Артикул: 9002450980000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

98 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00602085

FamilyProducts

HSS SPIRALBOHRER 98,000 DIN 345RN MK

FHA Flute helix angle

37 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

425 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002450980000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

280 mm

LF Functional length

294.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00602085

LPR Protruding length

324 mm

LS Shank length

218 mm

LU Usable length

224 mm

Name Identifying order number

245 98.000

NOF Flute count

OAL Overall length

534 mm

PL Point length

29.5 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN345

Working process

BVB - Drilling

WT Weight of item

14.742 kg
