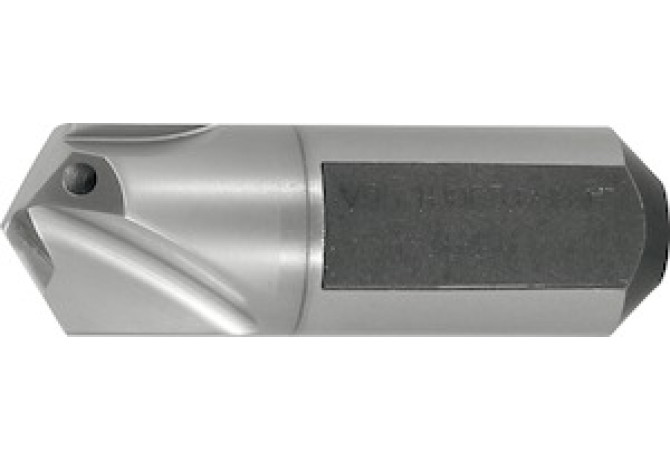

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 236662 115

236662 115

236662 115 236662 115 236662 115

236662 115

Hoffmann Group
Артикул: 236662 115
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TIALN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HOG-CENTRONF20
FamilyProducts
KOMET Centring point KUB V464
FHA Flute helix angle
3 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TIALN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
24.8 mm
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HOG-CENTRONF20
LPR Protruding length
22.5 mm
LS Shank length
32 mm
LU Usable length
9.9 mm
Name Identifying order number
236662 115
NOF Flute count
2
OAL Overall length
58 mm
PL Point length
8.24 mm
SIG Point angle 1st step
118 Degree
Working process
BVB - Drilling
WT Weight of item
0.095 kg
