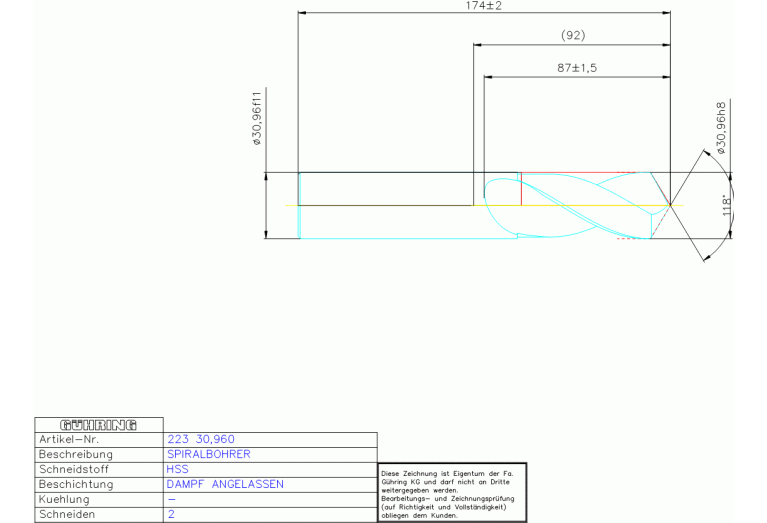

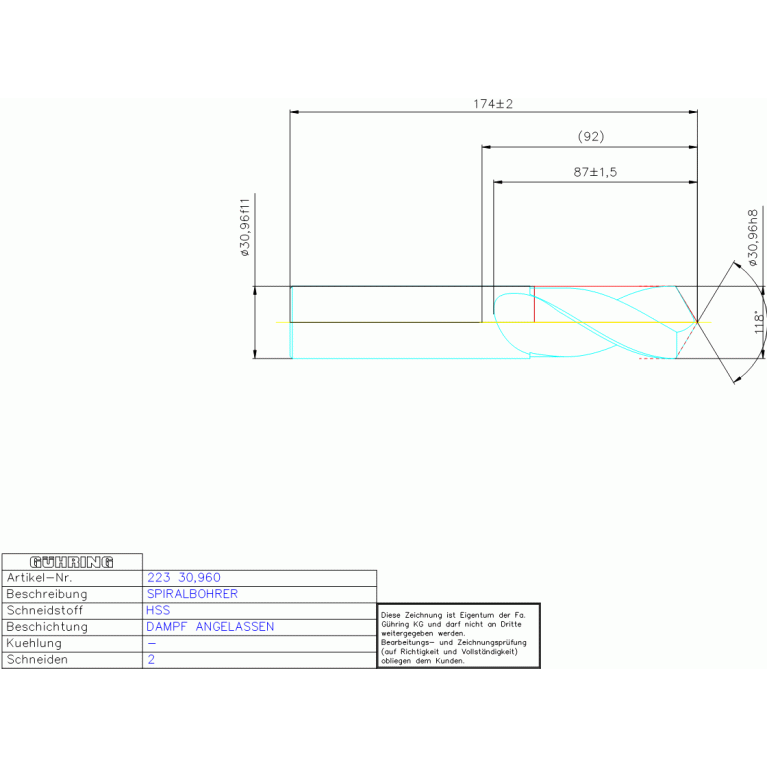

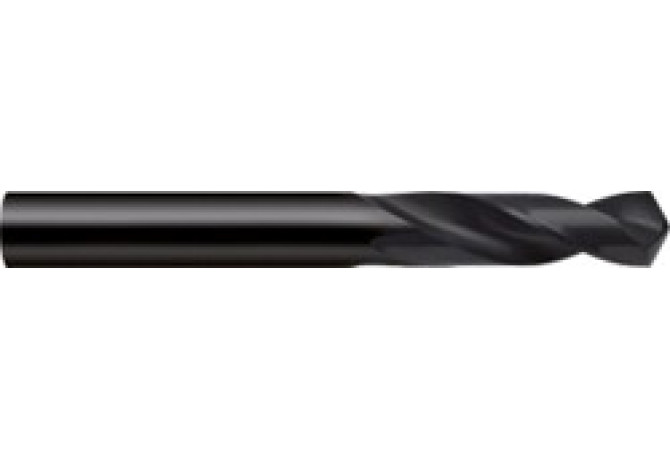

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 223 30.960

223 30.960

Артикул: 9002230309600

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

30.96 mm

DCONMSLD Shank diameter lower limit

-0.185 mm

DCONMSUD Shank diameter upper limit

-0.025 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL12180125

FamilyProducts

HSS SPIRALBOHRER 30,960 DIN 1897RN ZYLEX

FHA Flute helix angle

33 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

160 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9002230309600

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

87 mm

LF Functional length

164.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1218

LOC-03 DCONMS Diameter

30.96 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12180125

LPR Protruding length

92 mm

LS Shank length

87 mm

LU Usable length

69.6 mm

Name Identifying order number

223 30.960

NOF Flute count

OAL Overall length

174 mm

PL Point length

9.4 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN 1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.785 kg
