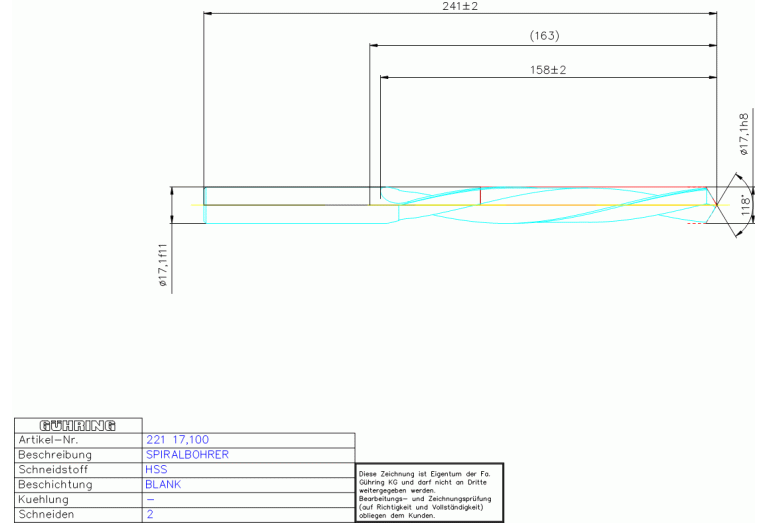

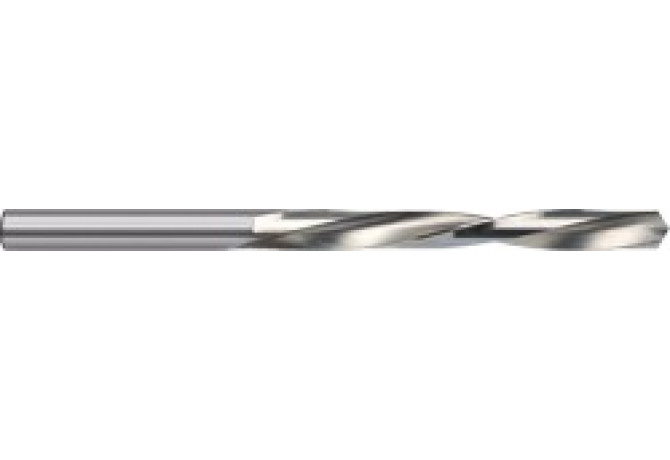

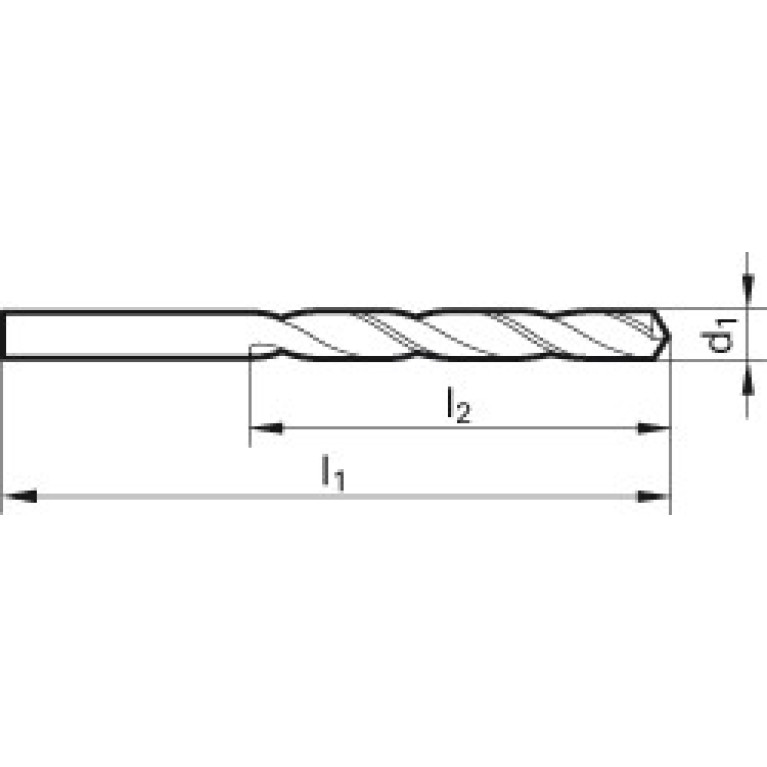

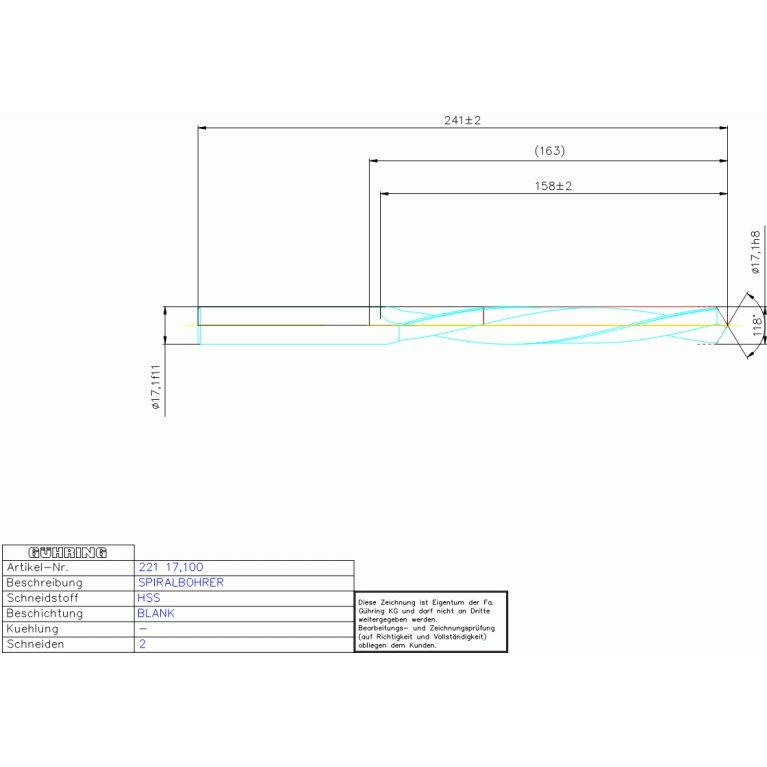

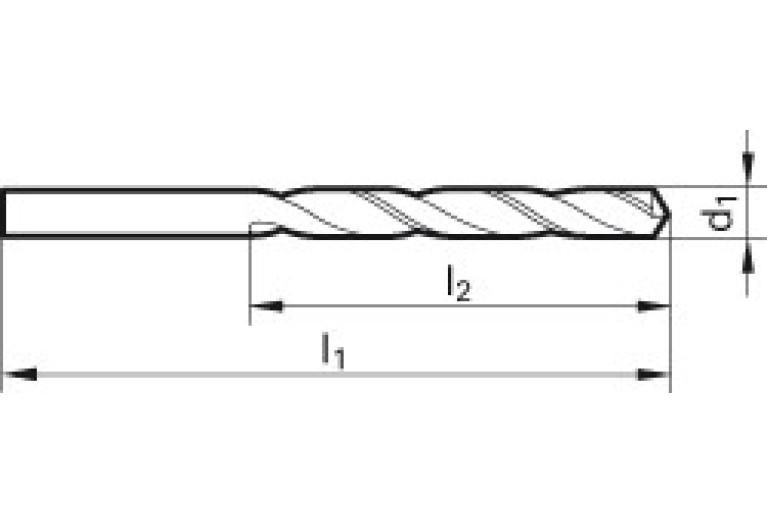

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 221 17.100

221 17.100

Артикул: 9002210171000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

17.1 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01710105

FamilyProducts

HSS SPIRALBOH, LANG 17,100 DIN 340LH ZYL

FHA Flute helix angle

15 Degree

FHH Flute helix hand

L - Hand of helix left

FHP Flute helix pitch

212 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

L - Left

ID Technical product number

9002210171000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

158 mm

LF Functional length

235.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0171

LOC-03 DCONMS Diameter

17.1 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01710105

LPR Protruding length

163 mm

LS Shank length

83 mm

LU Usable length

111 mm

Name Identifying order number

221 17.100

NOF Flute count

OAL Overall length

241 mm

PL Point length

5.2 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN 340

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.292 kg
