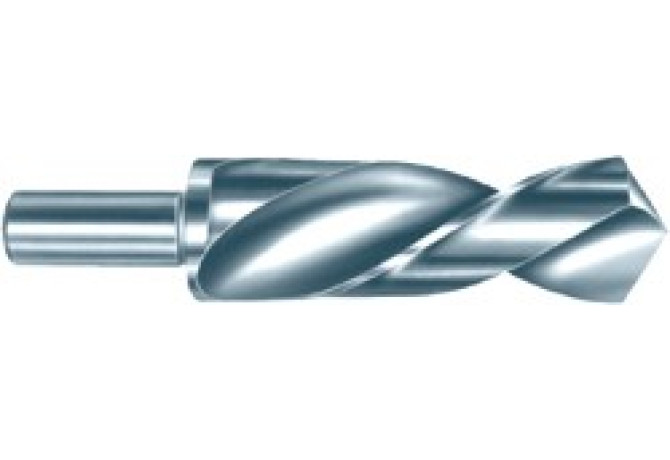

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 132 20.000

132 20.000

Артикул: 9001320200000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

20 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01600105

FamilyProducts

HSCO SPIRALBOHRER 20,000 WN LN ZYLABGES,

FHA Flute helix angle

30 Degree

FHH Flute helix hand

L - Hand of helix left

FHP Flute helix pitch

106 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

L - Left

ID Technical product number

9001320200000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

88 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

90 mm

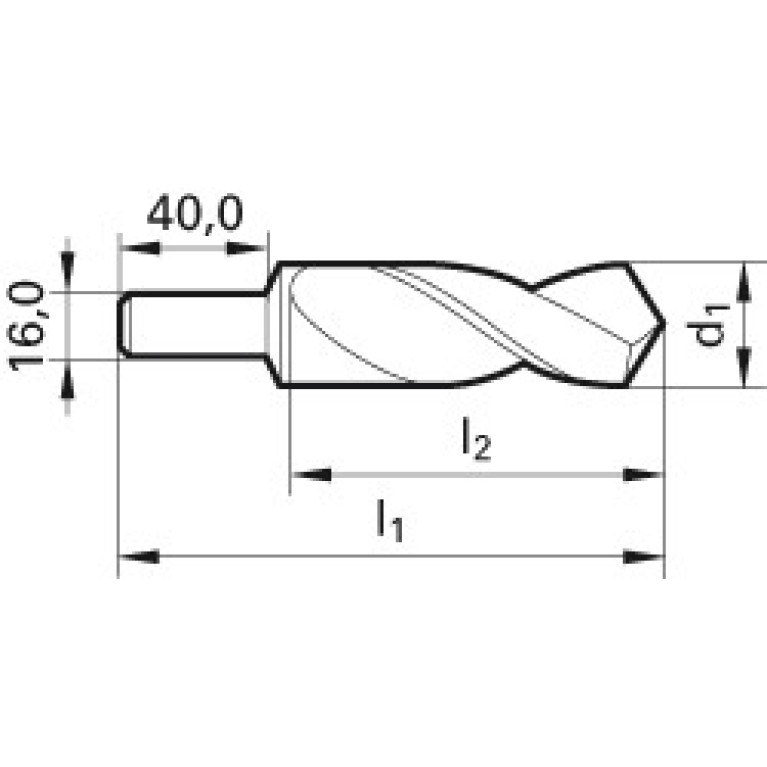

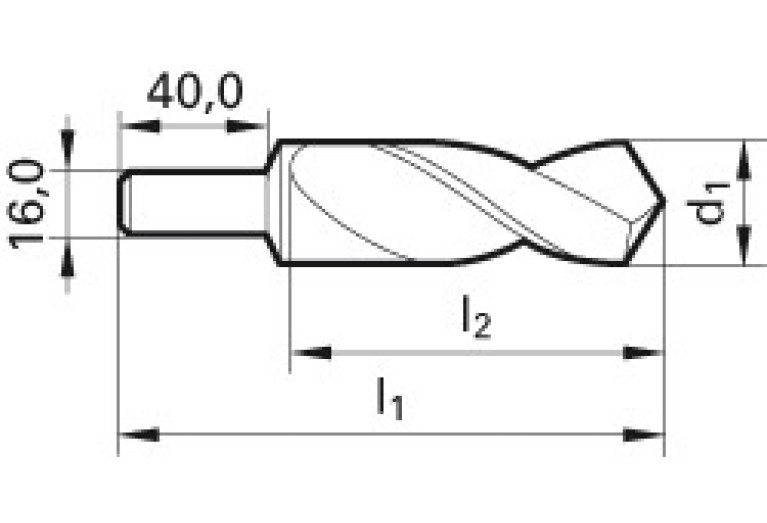

LS Shank length

40 mm

LU Usable length

62.1 mm

Name Identifying order number

132 20.000

NOF Flute count

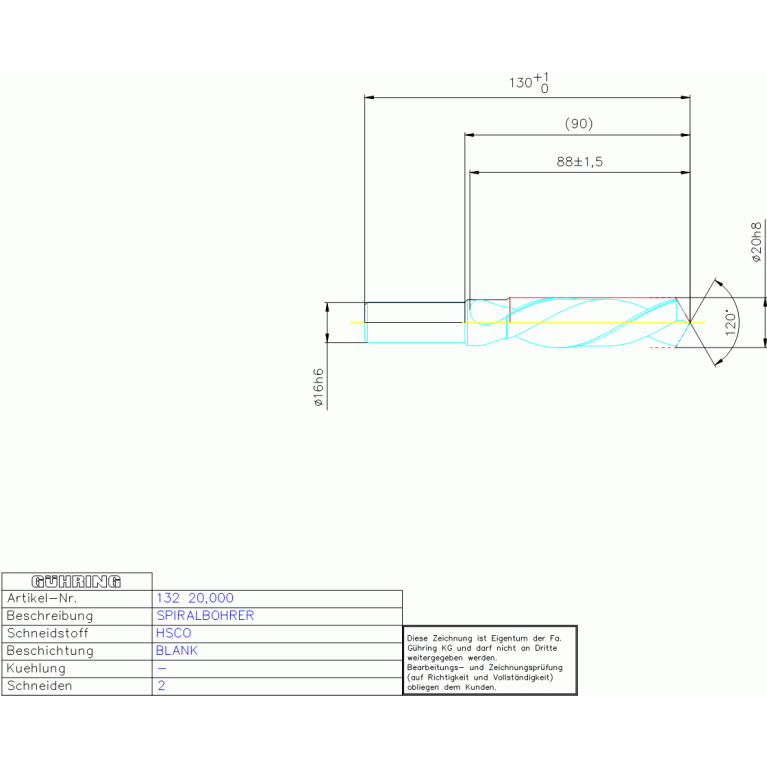

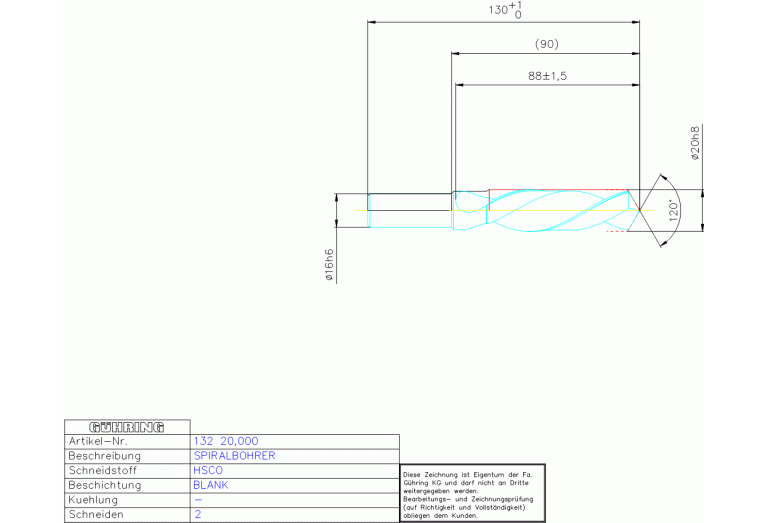

OAL Overall length

130 mm

PL Point length

5.8 mm

SIG Point angle 1st step

120 Degree

Working process

BVB - Drilling

WT Weight of item

0.157 kg
