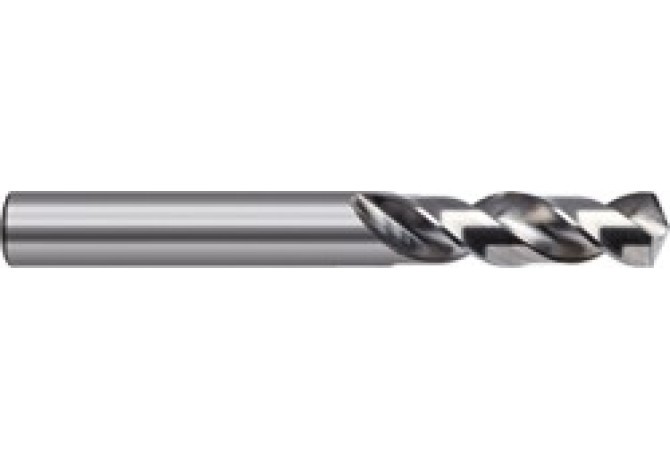

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1261 11.400

1261 11.400

Артикул: 1261 11.400

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

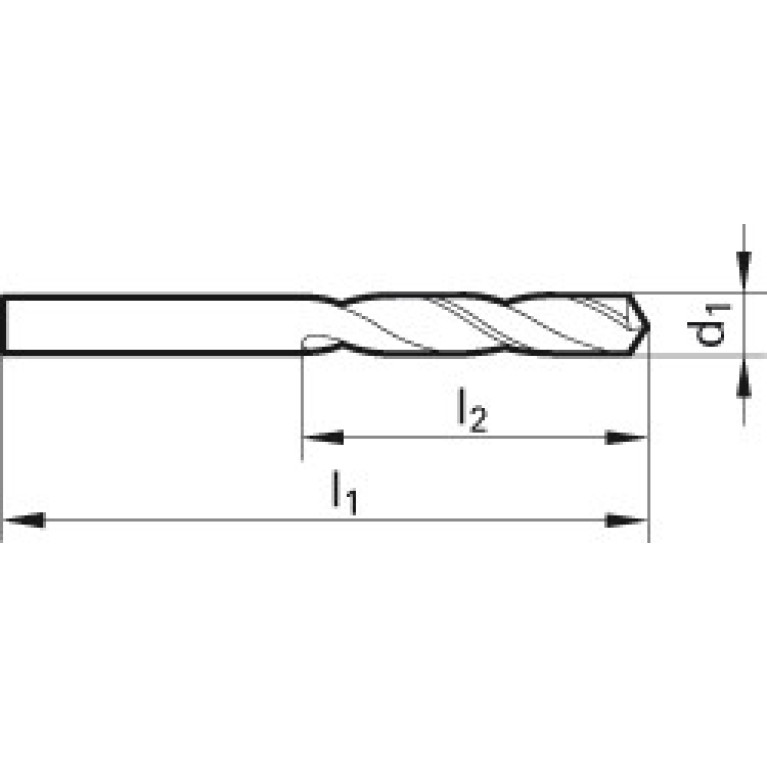

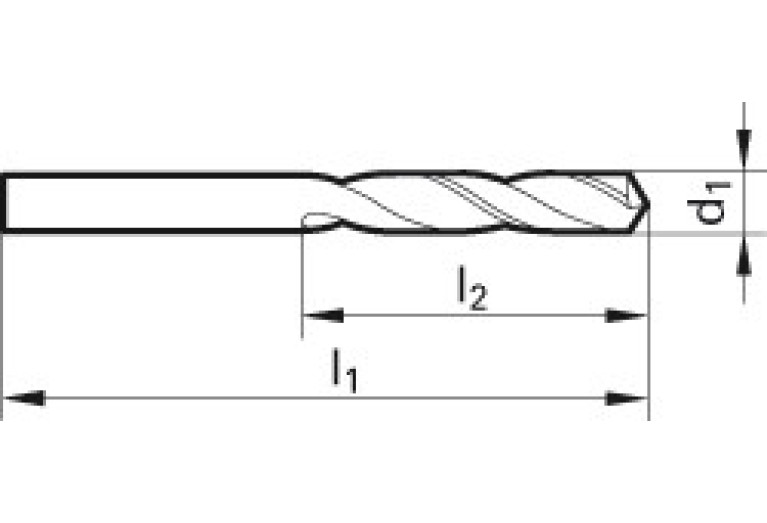

DC Cutting diameter minimum

11.4 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01140105

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

40 Degree

FHP Flute helix pitch

42.5 mm

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

47 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0114

LOC-03 DCONMS Diameter

11.4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01140105

LPR Protruding length

52 mm

LS Shank length

48 mm

LU Usable length

36.8 mm

Name Identifying order number

1261 11.400

NOF Flute count

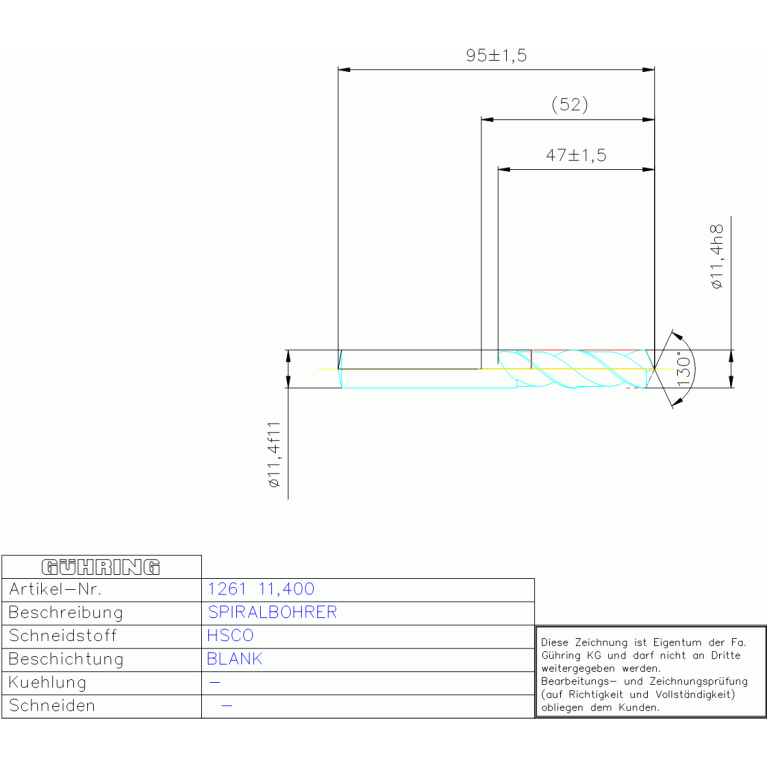

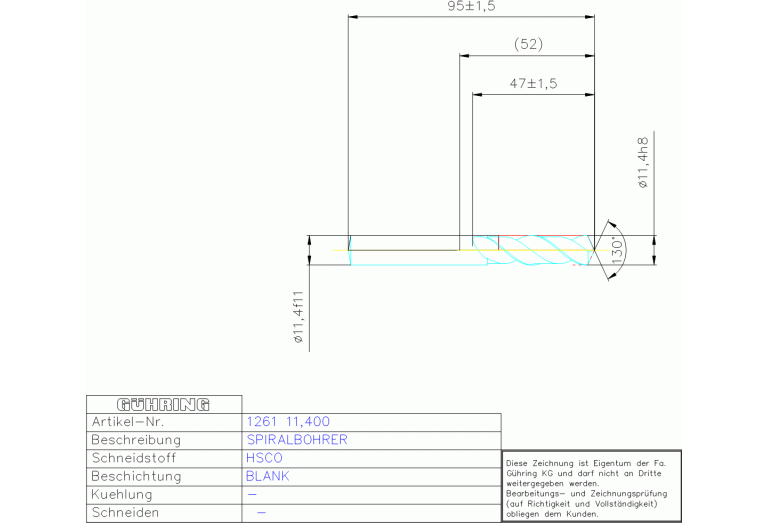

OAL Overall length

95 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN 1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.058 kg
