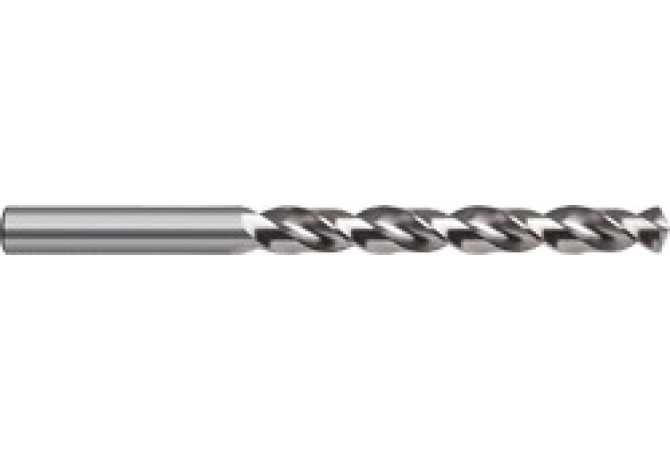

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1260 5.160

1260 5.160

Артикул: 1260 5.160

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5.16 mm

DCONMSLD Shank diameter lower limit

-0.085 mm

DCONMSUD Shank diameter upper limit

-0.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL02030125

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

19 mm

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

52 mm

LF Functional length

84.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0203

LOC-03 DCONMS Diameter

5.16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02030125

LPR Protruding length

57 mm

LS Shank length

34 mm

LU Usable length

47.6 mm

Name Identifying order number

1260 5.160

NOF Flute count

OAL Overall length

86 mm

PL Point length

1.3 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN 338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.01 kg
