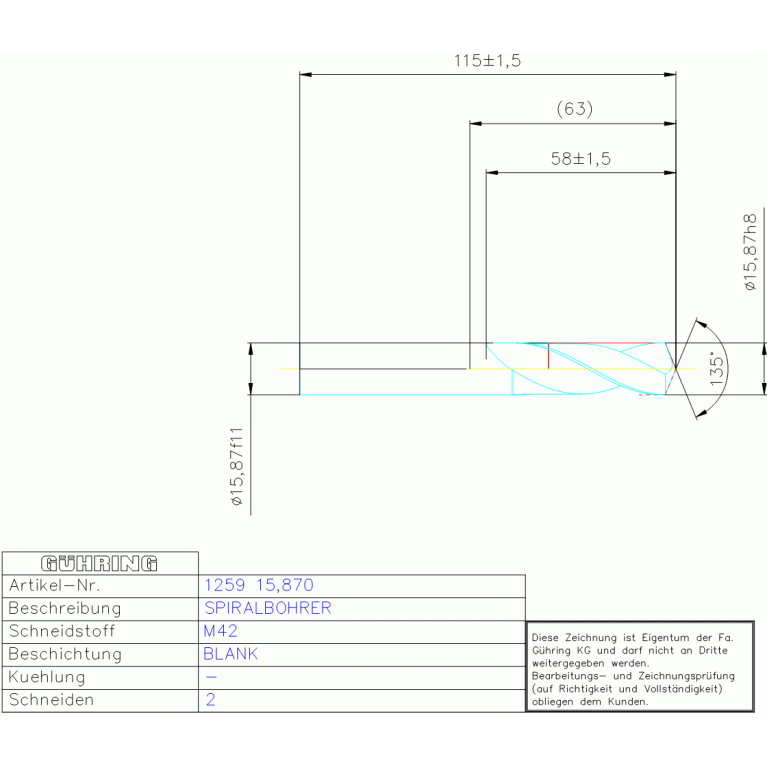

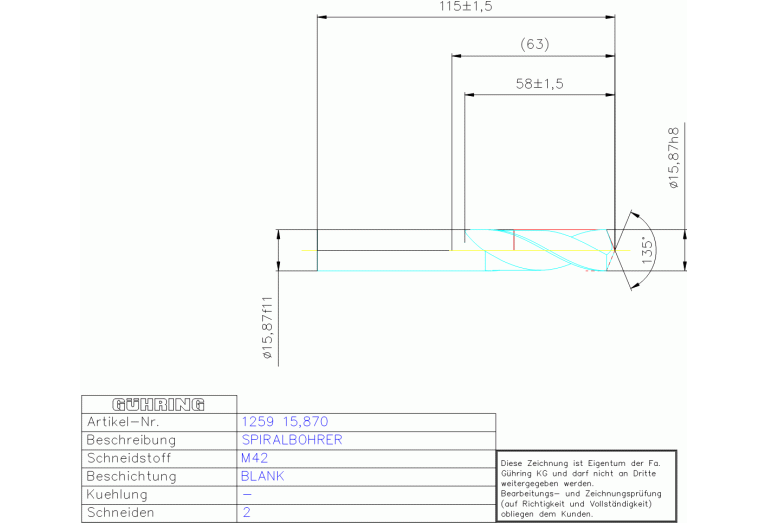

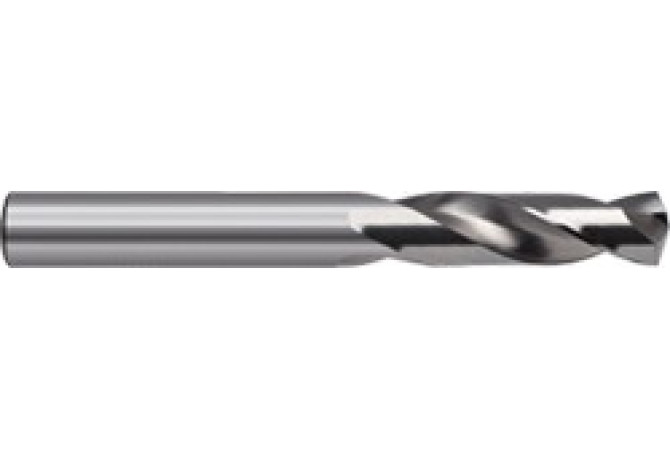

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1259 15.870

1259 15.870

Артикул: 1259 15.870

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

15.87 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL06250125

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

90 mm

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

GG-NK

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

58 mm

LF Functional length

111.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0625

LOC-03 DCONMS Diameter

15.87 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250125

LPR Protruding length

63 mm

LS Shank length

57 mm

LU Usable length

39 mm

Name Identifying order number

1259 15.870

NOF Flute count

OAL Overall length

115 mm

PL Point length

3.3 mm

SIG Point angle 1st step

135 Degree

STDNO Standard

DIN 1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.146 kg
