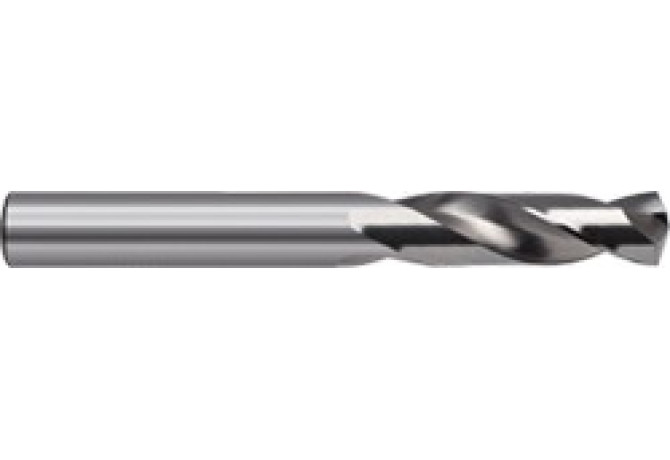

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1259 13.500

1259 13.500

Артикул: 1259 13.500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

13.5 mm

DCONMSLD Shank diameter lower limit

-0.126 mm

DCONMSUD Shank diameter upper limit

-0.016 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01350105

FamilyProducts

SPIRALBOHRER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

80 mm

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

GRDSYC Grind style code

GG-NK

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

54 mm

LF Functional length

104.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0135

LOC-03 DCONMS Diameter

13.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01350105

LPR Protruding length

59 mm

LS Shank length

53 mm

LU Usable length

38 mm

Name Identifying order number

1259 13.500

NOF Flute count

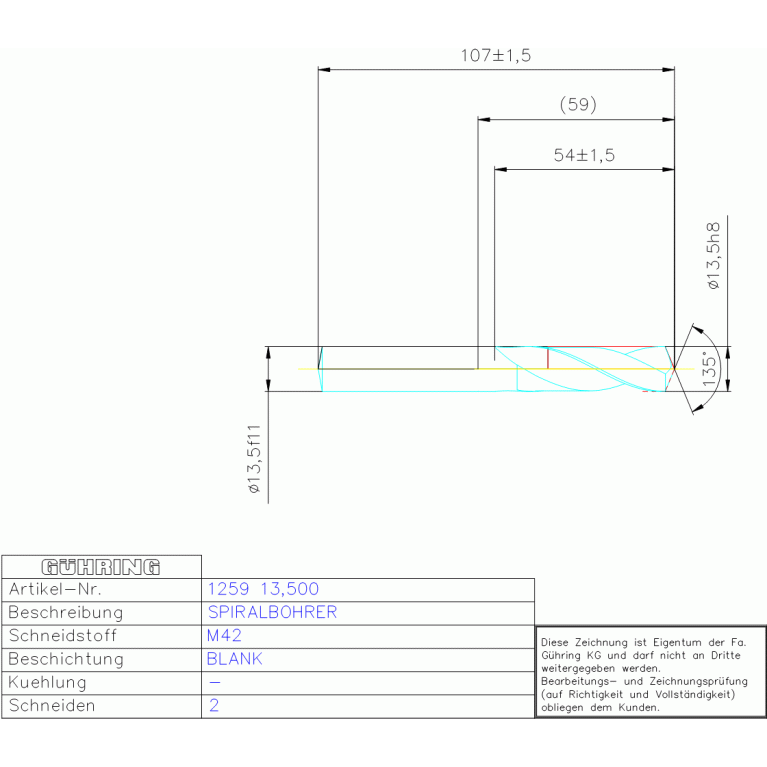

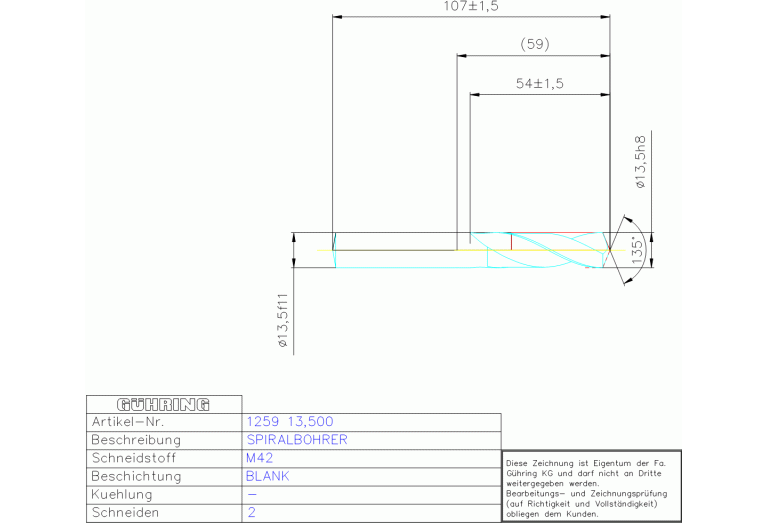

OAL Overall length

107 mm

PL Point length

2.8 mm

SIG Point angle 1st step

135 Degree

STDNO Standard

DIN 1897

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.098 kg
