122315 7,1
122315 7,1
Артикул:
122315 7,1
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
7.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00801005
FamilyProducts

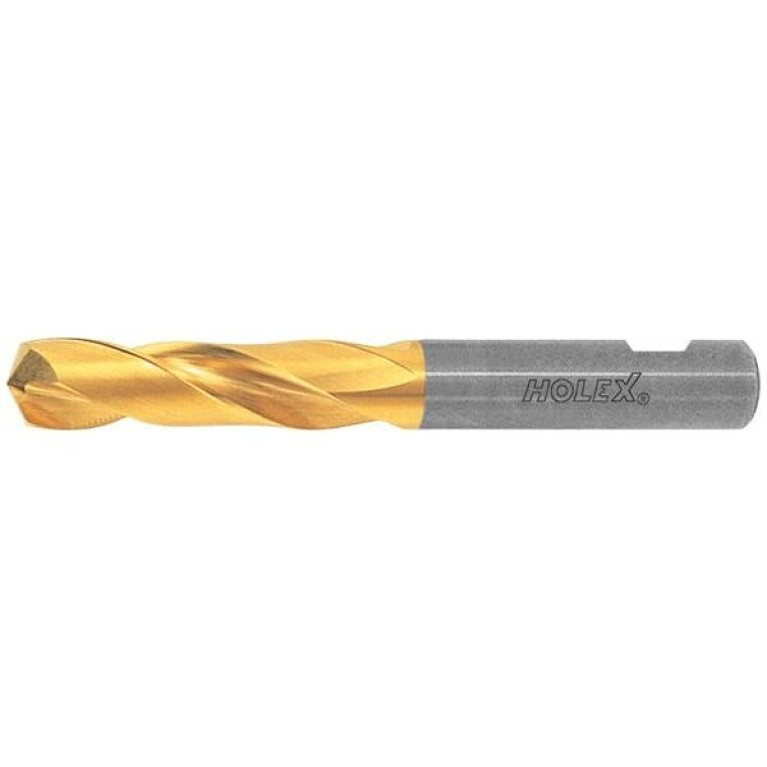

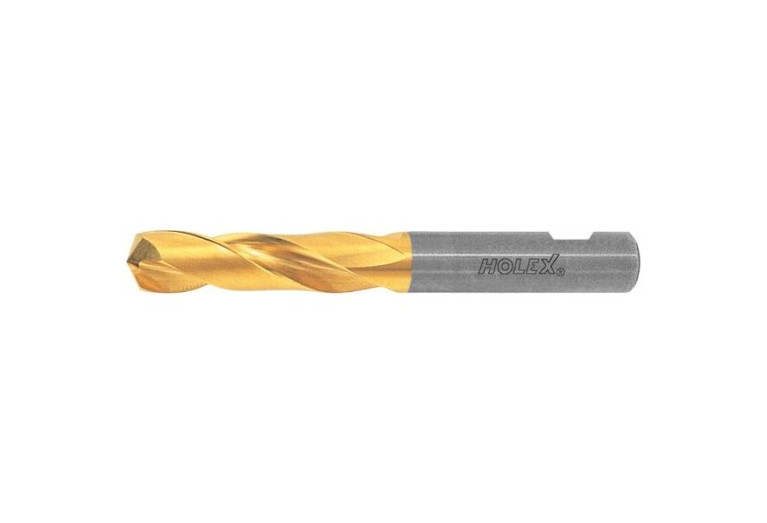

HOLEX Solid carbide high performance drill, Weldon shank DIN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005

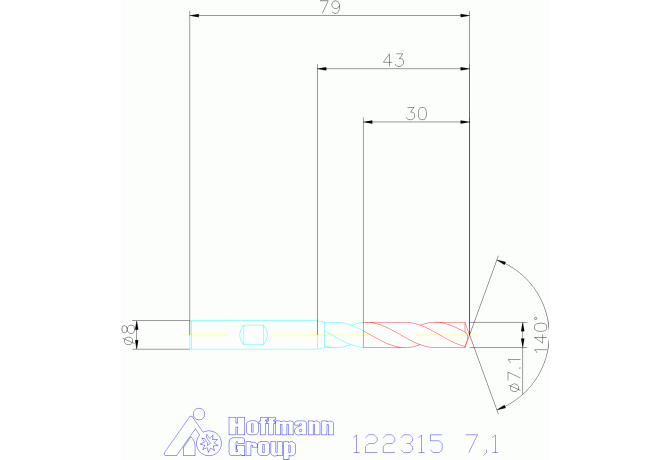

LPR Protruding length
43 mm
LU Usable length
30 mm
Name Identifying order number
122315 7,1
NOF Flute count
2
OAL Overall length
79 mm
SIG Point angle 1st step
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.038 kg
