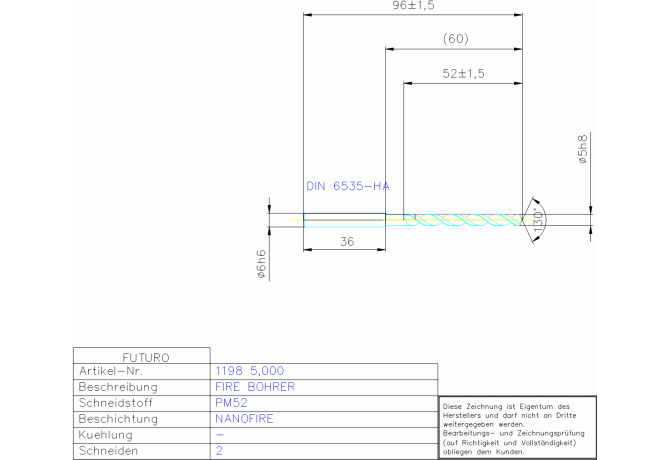

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1198 5.000

1198 5.000

Артикул: 9011980050000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

NANOFIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00600105

FamilyProducts

254150 FUTURO PM HSS-E FIRE BOH R GT500

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

20 mm

GRD2ND Standard designation of the grade 2nd application

PM52

GRDMFG Grade manufacturers designation

PM52

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9011980050000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

52 mm

LF Functional length

94.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

60 mm

LS Shank length

36 mm

LU Usable length

47 mm

Name Identifying order number

1198 5.000

NOF Flute count

OAL Overall length

96 mm

PL Point length

1.2 mm

SIG Point angle 1st step

130 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.017 kg
