Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1197 9.800

1197 9.800

Артикул: 9011970098000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9.8 mm

DCONMSLD Shank diameter lower limit

-0.103 mm

DCONMSUD Shank diameter upper limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00980105

FamilyProducts

254145 FUTURO PM HSS-E S-BOH DIN338R GT1

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

39.4 mm

GRD2ND Standard designation of the grade 2nd application

HSS-E-PM

GRDMFG Grade manufacturers designation

HSS-E-PM

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9011970098000

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

87 mm

LF Functional length

130.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0098

LOC-03 DCONMS Diameter

9.8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

f$11

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00980105

LPR Protruding length

92 mm

LS Shank length

46 mm

LU Usable length

78 mm

Name Identifying order number

1197 9.800

NOF Flute count

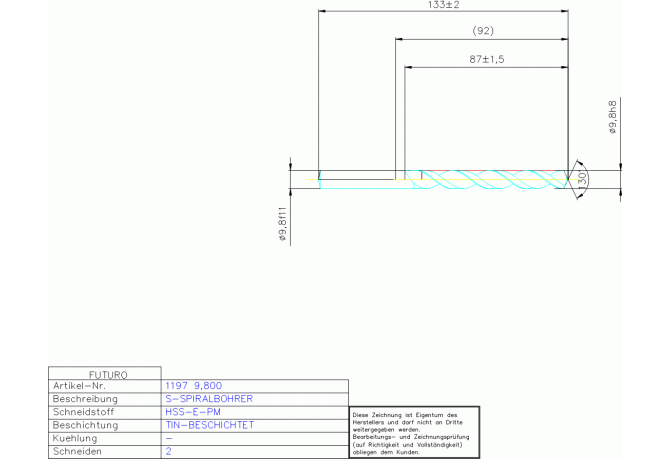

OAL Overall length

133 mm

PL Point length

2.3 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

f11

Working process

BVB - Drilling

WT Weight of item

0.055 kg
