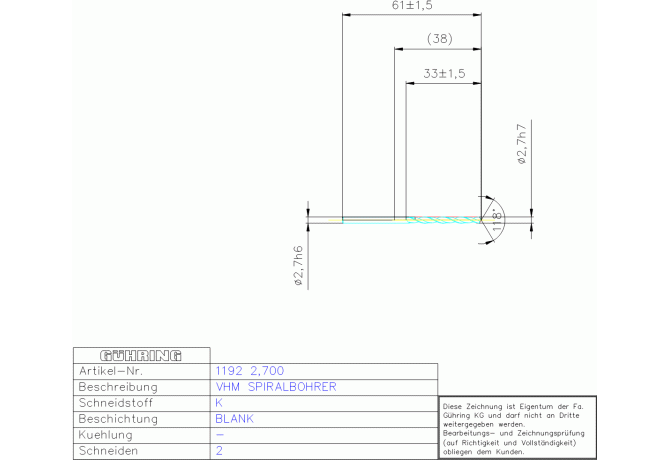

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1192 2.700

1192 2.700

Артикул: 1192 2.700

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

2.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

FamilyProducts

VHM SPIRALBOHRER

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

16 mm

GRD2ND Standard designation of the grade 2nd application

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

Interface codes

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

33 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

46 mm

LU Usable length

29 mm

Name Identifying order number

1192 2.700

NOF Flute count

OAL Overall length

61 mm

PL Point length

0.9 mm

SIG Point angle 1st step

118 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.004 kg
