116720 25R2

Артикул: 116720 25R2

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

MKG00302085

FamilyProducts

GARANT Jobber drill extra long HSS FS

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

365 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

461 mm

LU Usable length

340 mm

Name Identifying order number

116720 25R2

NOF Flute count

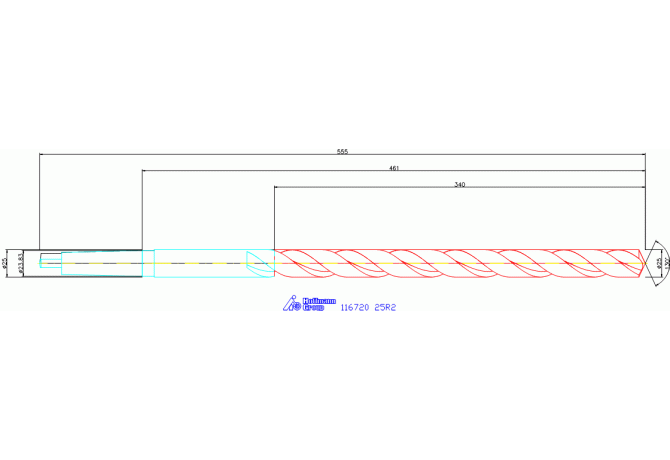

OAL Overall length

555 mm

PL Point length

5.8 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

1 kg
