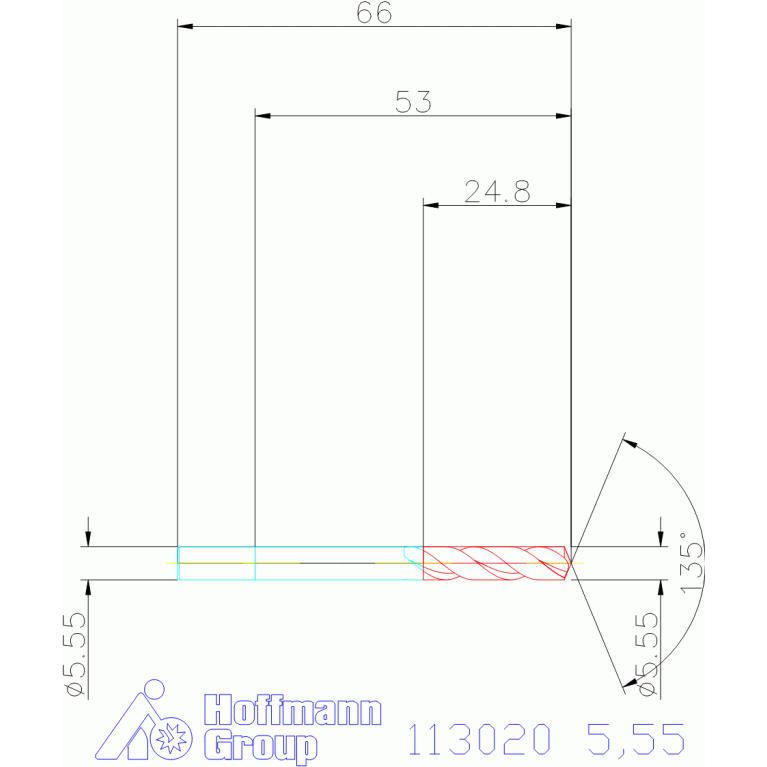

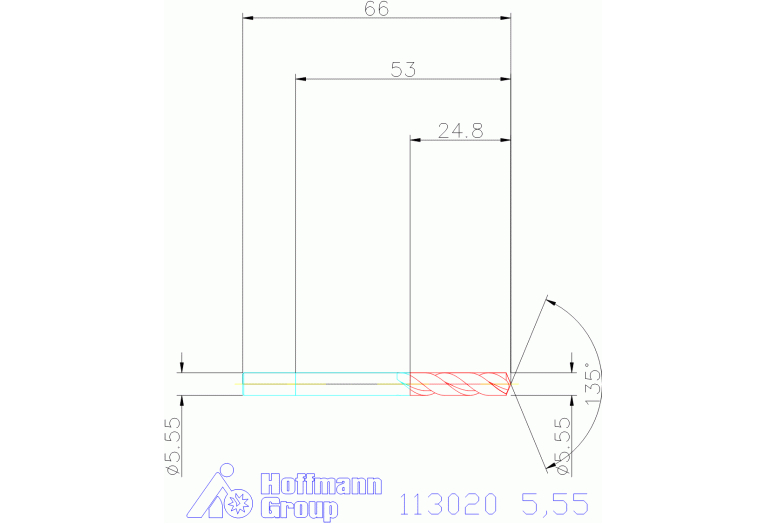

113020 5,55
113020 5,55
Артикул:
113020 5,55
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
5.55 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00550105
FamilyProducts
GARANT Stub drill FS HSS/E
FHA Flute helix angle
39 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS/E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
28 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0055
LOC-03 DCONMS Diameter
5.55 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00550105
LPR Protruding length
53 mm
LU Usable length
24.8 mm
Name Identifying order number
113020 5,55
NOF Flute count
2
OAL Overall length
66 mm
PL Point length
1.15 mm
SIG Point angle 1st step
135 Degree
STDNO Standard
DIN1897
Working process
BVB - Drilling
WT Weight of item
0.0102 kg
