Артикул: 113020 16,5

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

16.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01650105

FamilyProducts

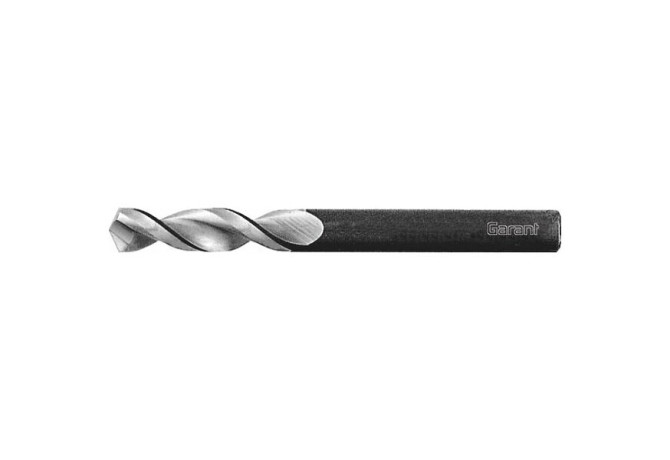

GARANT Stub drill FS HSS/E

FHA Flute helix angle

39 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS/E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0165

LOC-03 DCONMS Diameter

16.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01650105

LPR Protruding length

95 mm

LU Usable length

47.2 mm

Name Identifying order number

113020 16,5

NOF Flute count

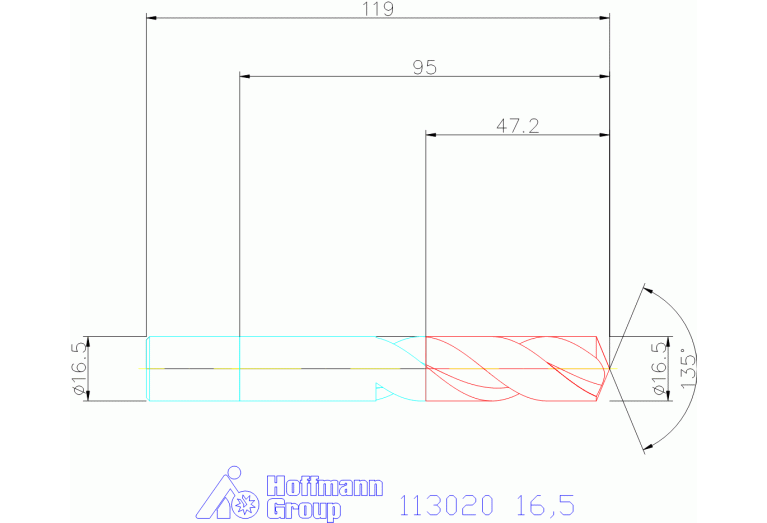

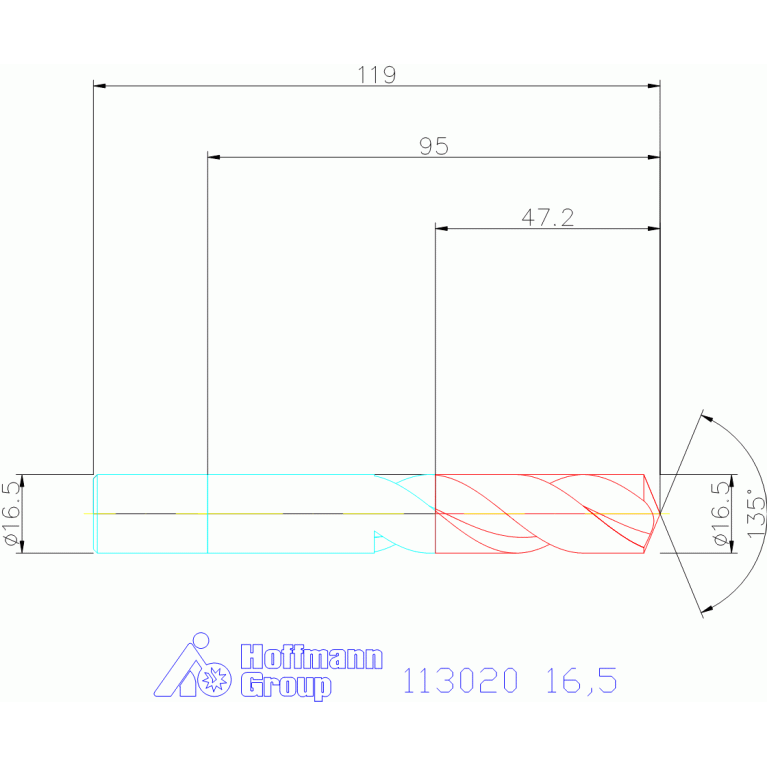

OAL Overall length

119 mm

PL Point length

3.42 mm

SIG Point angle 1st step

135 Degree

STDNO Standard

DIN1897

Working process

BVB - Drilling

WT Weight of item

0.149 kg
