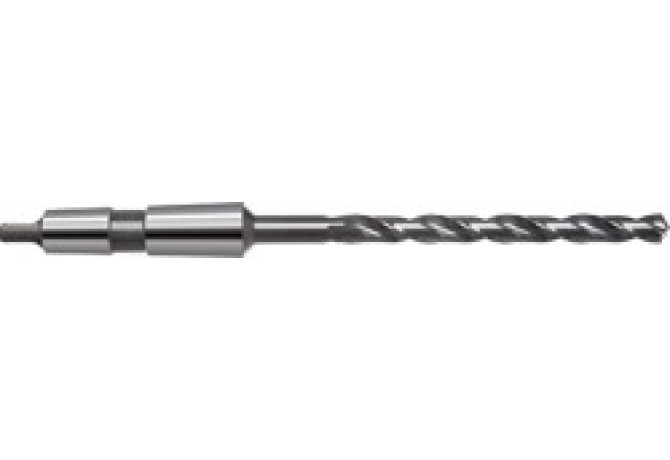

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1101 12.800

1101 12.800

Артикул: 1101 12.800

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

2 - With Coolant entry, radial

COATN Coating

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

12.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

MKG00202295

FamilyProducts

KUEHLKANALBOHRER

FHA Flute helix angle

31 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

67.3 mm

GRDMFG Grade manufacturers designation

HSS-KI

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

134 mm

LF Functional length

162.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202295

LPR Protruding length

166 mm

LU Usable length

119 mm

Name Identifying order number

1101 12.800

NOF Flute count

OAL Overall length

241 mm

PL Point length

3.9 mm

SIG Point angle 1st step

118 Degree

Working process

BVB - Drilling

WT Weight of item

0.265 kg
