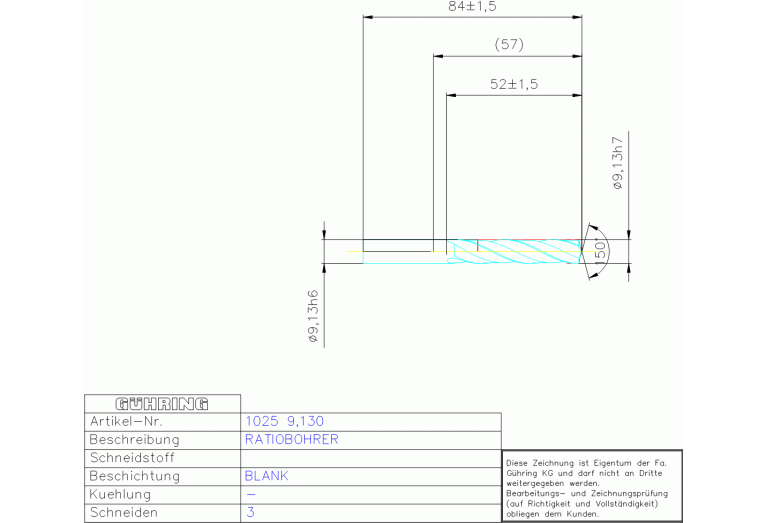

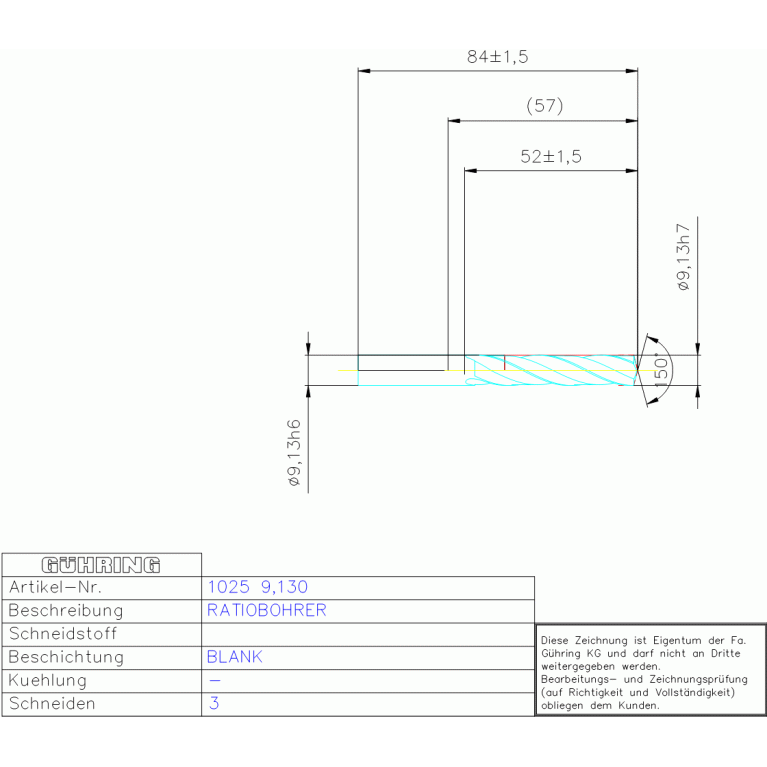

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill 1025 9.130

1025 9.130

Артикул: 1025 9.130

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9.13 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL03590125

FamilyProducts

RATIOBOHRER

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

56 mm

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

52 mm

LF Functional length

82.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0359

LOC-03 DCONMS Diameter

9.13 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03590125

LPR Protruding length

57 mm

LS Shank length

32 mm

LU Usable length

40 mm

Name Identifying order number

1025 9.130

NOF Flute count

OAL Overall length

84 mm

PL Point length

1.3 mm

SIG Point angle 1st step

150 Degree

STDNO Standard

DIN 6539

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.052 kg
